ABB 2CPX041808R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041808R9999
Quick Summary
ABB 2CPX041808R9999 is an interior fitting module for CombiLine panels, enabling safe OT630E installation. Engineers often struggle with limited space and safe enclosure when upgrading modular distribution systems. This unit complies with DIN EN 61439-3 and DIN EN 61439-2, and carries CE declarations while meeting RoHS and REACH requirements. For panel builders seeking reliable, scalable protection in modular distribution panels, it delivers installation flexibility, RoHS/REACH compliance, and CE documentation in industrial environments.
Product Information
Extended Description

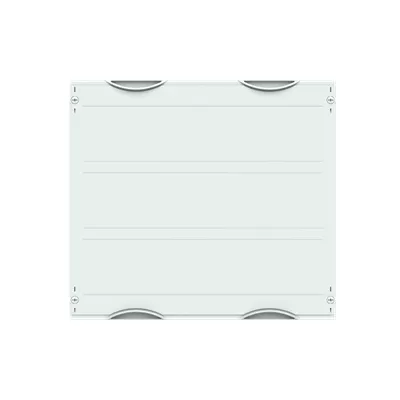

2CPX041808R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Universal switch unequipped, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 420 mm, unequipped for the installation of 1 Universal switch OT630E, for busbar system -pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 215 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Operational Current (Ie)
630 A
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT630E
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Meter Boards
0
Module Function
Universal switch unequipped
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
2.85 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.85 kg
E-Number (Norway)
2407824
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250A-800A
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 72 DIN places within a 500 mm wide, 450 mm high, 215 mm deep interior fitting module. Business Impact: Maximizes space for a single OT630E while keeping cable routing tidy, reducing panel depth and improving serviceability. Application: Ideal for CombiLine modular distribution panels in manufacturing environments. Feature: Rated current up to 630 A and rated operational voltage up to 400 V. Business Impact: Supports high-power peripherals with safe busbar connections and robust protection, boosting reliability and uptime. Application: Heavy-duty protection schemes in industrial control gear. Feature: Enclosure type interior fitting module with plastic cover and 90-degree press-and-turn closure in light grey (RAL 7035). Business Impact: Provides durable protection with easy access, reducing maintenance time and risk of exposure. Application: Safe, compliant enclosure in space-constrained control panels. Feature: Enclosure mounting frame compatibility WR or EDF; 2 DIN place units; usable width 420 mm; designed for mounting one universal switch OT630E. Business Impact: Reduces integration effort, supports quick field upgrades, and improves modular scalability. Application: Modular panels requiring straightforward replacement and expansion. Feature: Compliance and documentation package including RoHS, REACH declarations, WEEE considerations, and EN 61439-2/3 standards. Business Impact: Ensures regulatory compliance and simplifies auditing, procurement, and supplier qualification. Application: Panel builders targeting regulated industries with rigorous documentation needs. Practical insights: Mounting instruction MBA250A-800A and related datasheets streamline installation planning, helping teams avoid common setup mistakes and shorten commissioning.
Get a Quick Quote for a ABB 2CPX041808R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041808R9999?
Enquire Now
FAQs
Yes. The interior fitting module is designed to house one OT630E within a 72 DIN space, using a 500 mm wide x 450 mm high footprint and a 420 mm usable width. It supports a single device while enabling tidy cable routing and straightforward integration into CombiLine modular panels.
Key specs include a rated current of 630 A and a rated operational voltage of 400 V. It is built to accommodate a 630 A busbar system and provides a robust enclosure for high-current applications inside modular distribution panels.
The module complies with DIN EN 61439-3 and DIN EN 61439-2, accompanied by a CEDeclaration of Conformity. It is RoHS compliant with REACH information, and falls under WEEE category considerations for end-of-life handling, ensuring regulatory alignment for industrial deployments.
The unit’s dimensions (500 x 450 x 215 mm), 72 DIN placement, and WR/EDF mounting frame simplify installation and future expansion. The 90-degree closure and lightweight plastic cover speed access during maintenance, while the modular design reduces field wiring complexity and downtime.
Support materials include mounting instructions MBA250A-800A and the associated data sheets. Documentation covers RoHS/REACH declarations, EN 61439-2/3 compliance, and ETIM classifications, helping procurement and installation teams qualify the product efficiently.
