ABB 2CPX041812R9999 Fitting Module - DIN EN 61439-3
Part Number: 2CPX041812R9999
Quick Summary
ABB 2CPX041812R9999 measuring device cabinet module for modular distribution panels provides a compact solution to organize four 96x96 measuring devices within a 36 DIN space. Engineers often face tight cabinet real estate, unassembled panels, and the challenge of integrating multiple measuring units without compromising accessibility, heat management, or future expansion. This interior fitting module aligns with DIN EN 61439-3 and DIN EN 61439-2, and carries a CE Declaration of Conformity along with RoHS and REACH compliance. For project efficiency and supply chain reliability, it supports CombiLine modular distribution panels and interior fittings, delivering faster installation, standardized aesthetics, and lower total cost of ownership through scalable design and proven frame compatibility.
Product Information
Extended Description

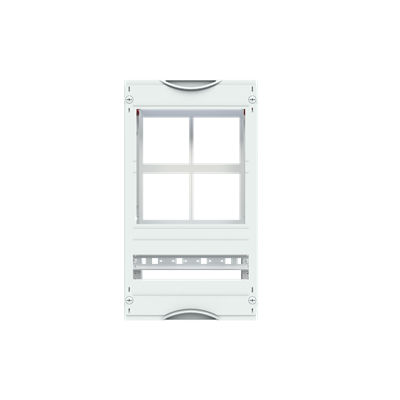

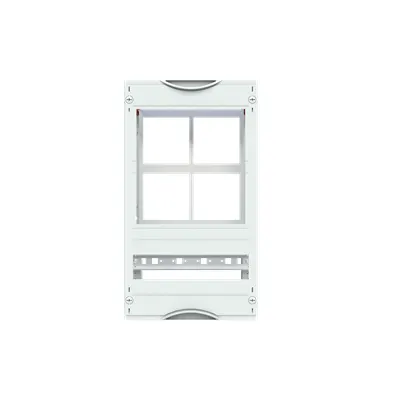

2CPX041812R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Measuring device, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Fixed mounting, unequipped for the installation of 4 Measuring device 96x96, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Mountable Devices
4
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
96x96
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Fixed mounting
DIN Place Units
36
Meter Boards
0
Module Function
Measuring device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
1.44 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.44 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBU157-158
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 36 DIN place units with fixed mounting and a grid designed for 3 GU (450 mm) height and 250 mm panel width. Business Impact: Maximizes enclosure utilization while keeping space for future wiring and device upgrades. Application: Ideal for ABB CombiLine interior cabinets in industrial automation projects needing organized space for up to four 96x96 measuring devices. Feature: Enclosure mounting frames WR or EDF compatibility. Business Impact: Flexible installation options reduce custom fabrication and enable quick on-site mounting. Application: Suitable for wall or frame-mounted control cabinets in process industries. Feature: Plastic covers with a light grey RAL 7035 finish and 90-degree press-and-turn closure. Business Impact: Superior durability, easy maintenance, and a consistent cabinet interior for reliability and compliance. Application: Enclosures used in harsh or regulated environments where appearance and access matter. Feature: RoHS, REACH compliance and EU Declaration of Conformity. Business Impact: Low regulatory risk, simplified supplier audits, and faster time-to-approval for regulated industries. Application: Telecom, energy, and manufacturing sectors requiring traceable material compliance. Feature: Unassembled for installation of measuring devices. Business Impact: Flexible pre-assembly workflow reduces field labor and accelerates project timelines. Application: Panel builders configuring bespoke distributions within CombiLine systems. Feature: Dimensions and compatibility details: 36 DIN units, 250 mm width, 450 mm height, 225 mm built-in depth. Business Impact: Clear BOM planning and predictable enclosure sizing. Application: Cabinet design and space planning for modular distribution panels in industrial facilities.
Get a Quick Quote for a ABB 2CPX041812R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041812R9999?
Enquire Now
FAQs
Yes. The enclosure supports WR or EDF mounting frames, enabling flexible installation in wall- or frame-mounted systems and ensuring compatibility with common industrial cabinet infrastructures.
The module is designed to house up to four 96x96 measuring devices within a 36 DIN unit layout, with slots prepared for device installation in a fixed-mount enclosure.
It complies with DIN EN 61439-3 and DIN EN 61439-2, carries an EU CE Declaration of Conformity, and adheres to RoHS and REACH requirements to support regulatory readiness.
The unit provides 36 DIN place units with a net width of 250 mm, a net height of 450 mm, and a net depth of 225 mm, designed for fixed mounting within CombiLine panels.
Mounting instruction MBU157-158 is referenced in the installation details, with additional datasheets and catalog information available for panel builders and service technicians.
