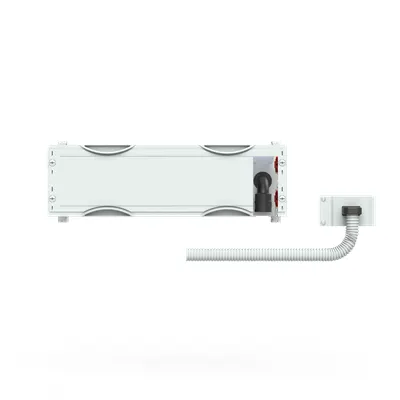

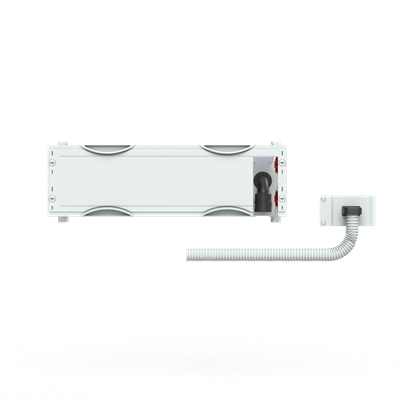

ABB 2CPX041818R9999 Cable connection module - 61439-3
Part Number: 2CPX041818R9999
Quick Summary
ABB 2CPX041818R9999 cable connection module enables modular, clean wiring in distribution panels. Engineers often battle cramped enclosures, tangled cables, and assembly delays that drive up installation time. The product is designed to meet DIN EN 61439-3 with CE conformity and RoHS/REACH declarations, supporting compliant, safe installations. As an interior fitting module in CombiLine systems, it optimizes 24 DIN place units and cabinet depth, delivering predictable layouts and faster builds. By standardizing mounting and materials, it reduces field errors and maintenance costs while improving serviceability for panel builders and system integrators.
Product Information
Extended Description
2CPX041818R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Cable connection module, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, Fixed mounting, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Mounting Type
Fixed mounting
DIN Place Units
24
Meter Boards
0
Module Function
Cable connection module
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
225 mm
Section Width
2
Product Net Weight
2 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBV180-282
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Interior fitting module design for CombiLine with fixed mounting simplifies installation and reduces field modifications, translating to faster project completion and lower labor costs in busy panel shops. The 24 DIN place units provide high packing density for cable termination and distribution, enabling cleaner layouts and improved heat management in compact cabinets. The 90-degree press-and-turn closure offers quick access during commissioning and maintenance while ensuring reliable sealing and long-term durability in demanding environments. RoHS compliance and REACH declarations reduce regulatory risk and facilitate entry into EU markets, supporting smoother procurement and audits. The light grey RAL 7035 finish and fixed-mount construction align with standard cabinet aesthetics and compatibility, helping teams meet design specs without custom parts. Overall, the module reduces risk, enhances reproducibility, and accelerates serviceability for ongoing operations.
Get a Quick Quote for a ABB 2CPX041818R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041818R9999?
Enquire Now
FAQs
The module is designed for fixed mounting in CombiLine interior fitting panels and supports 24 DIN place units. It fits within standard cabinet depths (225 mm) and can be installed using the Mounting Instruction MBV180-282, ensuring predictable layouts and rapid commissioning.
It is rated for a maximum operational voltage of 400 V, with 24 DIN place units and a 500 mm width, 150 mm height, and 225 mm depth. These specs align with typical panel distribution needs and DIN EN 61439-3 requirements.
This product uses fixed mounting within interior fittings, not DIN rail mounting. It is intended for CombiLine cabinet installations, offering reliable enclosure integration and straightforward assembly for modular distribution panels.
The module supports CE conformity, RoHS compliance, and REACH declarations, with alignment to DIN EN 61439-2 and DIN EN 61439-3 for distribution panels and distributors, respectively, ensuring regulatory and safety adherence.
By standardizing mounting, increasing DIN capacity, and enabling quick access with the 90-degree closure, the product reduces installation time and field errors, lowers labor costs, and simplifies ongoing maintenance and audits in industrial panel environments.
