ABB 2CPX041821R9999 Meter Device - DIN EN 61439-3
Part Number: 2CPX041821R9999
Quick Summary
The ABB 2CPX041821R9999 meter device is a compact interior fitting module designed for CombiLine modular panels. It addresses space planning and installation complexity in control cabinets by delivering a 60 DIN space footprint with a 750 mm grid height, 250 mm panel width, and 225 mm built‑in depth. This unit is CE‑conformant and RoHS/REACH compliant, with DIN EN 61439-3 compatibility to ensure safety and reliability in 400 V three‑phase systems. For system integrators, the combination of a light grey RAL 7035 finish and a robust 3 point fixing design supports fast mounting, easier maintenance, and regulatory compliance across industrial environments.
Product Information
Extended Description

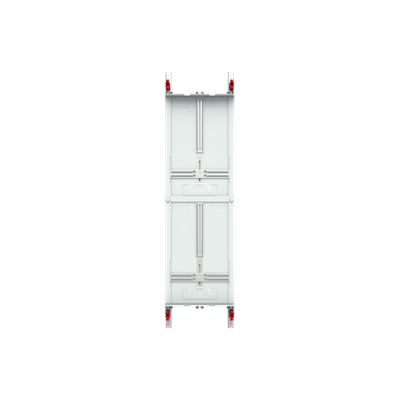

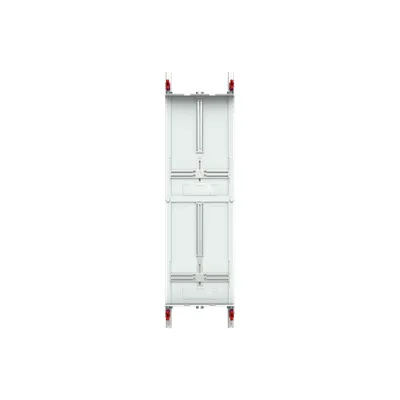

2CPX041821R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Meter device with 3 point fixing, Grid unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Model Number
2-story
Number of Phases
3
Number of TSG Panels
0
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
Meter Type
3.HZ
Protection Type
None
Accessories Available
Yes
DIN Place Units
60
Meter Boards
0
Module Function
Meter device with 3 point fixing
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
750 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
1.5 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.5 kg
E-Number (Norway)
2439318
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBZ160/161
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: 60 DIN place units maximize cabinet density while preserving service access, enabling compact panels without sacrificing future expandability; this reduces footprint costs and accelerates commissioning in industrial automation projects. Feature → 750 mm grid height and 250 mm panel width align with standard modular distributions, speeding up panel fabrication and reducing custom tooling costs for OEMs. Feature → 3‑phase 400 V operation with a 3.HZ meter type ensures compatibility with typical factory power rails, improving system reliability and simplifying power metering integration on assembly lines and machinery. Feature → 90‑degree press and turn closure and a WR mounting frame support quick, tool‑free assembly and secure enclosure integrity in harsh environments; minimizes field service time and downtime. Feature → RoHS and REACH declarations and a CE certificate deliver regulatory assurance, lowering compliance risk for customers in regulated industries. Feature → Light grey RAL 7035 finish and plastic covers provide a clean, maintenance‑friendly appearance that reduces maintenance cycles and enhances visual diagnostics during audits. Feature → WEEE category and CMRT reporting support sustainability programs and supply chain transparency, addressing corporate ESG and compliance objectives.
