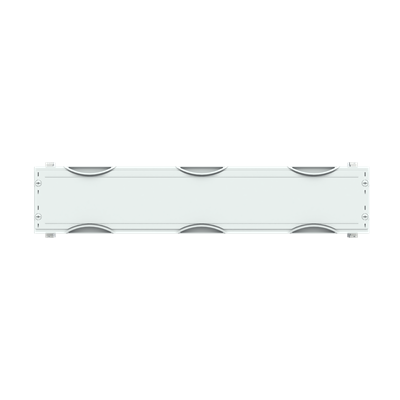

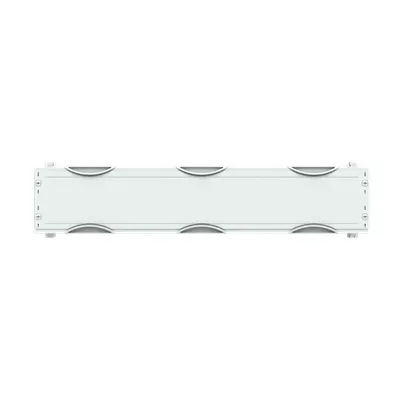

ABB 2CPX041824R9999 Interior Fitting Module - DIN EN 61439
Part Number: 2CPX041824R9999
Quick Summary
ABB 2CPX041824R9999 Interior fitting module enables modular panel layouts for cable management in control cabinets. Space constraints, retrofit timing, and wiring complexity are common pain points that this solution helps address. It aligns with DIN EN 61439-3 and DIN EN 61439-2, plus CE conformity and RoHS/REACH compliance for safe, standards-driven assemblies. Designed for 36 DIN place units with a 750 mm width and 200 mm built-in depth, it supports scalable modular distribution panels. For panel builders and industrial installers, this solution reduces project risk, shortens installation time, and helps maintain ongoing compliance across evolving control systems.
Product Information
Extended Description
2CPX041824R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for cable fastening rail, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, , usuable depth of 87 mm up to 142 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
36
Meter Boards
0
Module Function
cable fastening rail
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
98bb239c-8916-49ed-a0f0-03c96aef77fc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
150 mm
Product Net Depth / Length
200 mm
Section Width
3
Product Net Weight
1.83 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.83 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBF183-383
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Integrated cable fastening rail in the interior module creates a continuous, orderly routing for power and signal conductors. Business Impact: Reduces wiring errors, accelerates commissioning, and lowers maintenance downtime by providing predictable paths and easier fault tracing. Application: This is especially beneficial for CombiLine interior fitting modules in control cabinets and modular distribution panels where dense wiring and frequent reconfiguration are common in machine shops and process plants. Feature: 36 DIN place units across a 750 mm width and 150 mm height with a 200 mm built-in depth. Business Impact: Increases cabinet density, minimizes enclosure footprint, and lowers panel-building labor costs while preserving accessible wiring space. Application: Perfect for mid-range control panels in packaging, conveyance, and manufacturing lines, where space optimization and scalable expansion are critical. The generous DIN footprint also simplifies component alignment and reduces overcrowding inside the cabinet. Feature: 90-degree press-and-turn closure with light grey plastic covers provides secure enclosure sealing and quick service. Business Impact: Improves dust protection, reduces rework during door closures, and speeds routine inspections. Application: Particularly valuable in harsh factory environments where frequent access is needed for maintenance, testing, and reconfiguration of CombiLine systems. Feature: Comprehensive material and regulatory compliance including RoHS, REACH declarations, and EN 61439-3/2 standards. Business Impact: Lowers regulatory risk, simplifies audits, and supports sustainability goals across multi-site deployments. Application: Suitable for automotive, food & beverage, and industrial automation projects that must meet EU directives, SCIP reporting, and WEEE requirements. The enclosure mounting frame options WR or EDF further ease integration with ABB CombiLine enclosures, reducing installation errors and boosting overall plant reliability.
Get a Quick Quote for a ABB 2CPX041824R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041824R9999?
Enquire Now
FAQs
The unit is designed for WR or EDF enclosure mounting frames and supports 36 DIN place units within a 750 mm wide cabinet. Follow the mounting instruction MBF183-383 to align the module, insert cable fastening rails, and secure with the 90-degree closure for quick access and reliable sealing.
The module supports a rated operational voltage up to 400 V and an operational voltage of 400 V, making it suitable for typical industrial control and distribution panel applications.
Yes. The product carries RoHS information and a REACH declaration, confirming compliance with EU directives and providing the necessary data for regulatory audits.
It accommodates 36 DIN place units within a 750 mm width and 150 mm height, with a built-in depth of 200 mm, enabling high-density, scalable panel designs for CombiLine systems.
It improves space utilization, reduces installation time, and ensures compliance with EN 61439 standards, RoHS/REACH, and CE. These factors collectively lower risk, cut lifecycle costs, and accelerate commissioning in automated facilities.
