ABB 2CPX041825R9999 Busbar System - 440A, 3P, 60mm
Part Number: 2CPX041825R9999
Quick Summary
ABB 2CPX041825R9999 is a busbar system interior fitting module designed for CombiLine modular distribution panels in industrial control cabinets. When expanding power distribution, engineers often confront space constraints, mounting complexity, and the need to keep wiring safe and compliant. This module supports CE conformity with DIN EN 61439-2/3 standards, RoHS and REACH declarations, reinforcing regulatory alignment without sacrificing layout flexibility. The design offers a compact footprint and predictable assembly, while the 24 DIN place units and horizontal 60 mm busbar alignment enable scalable, service-friendly configurations. For businesses, this translates into faster installation, easier future upgrades, and reduced lifecycle costs in controlled environments.
Product Information
Extended Description

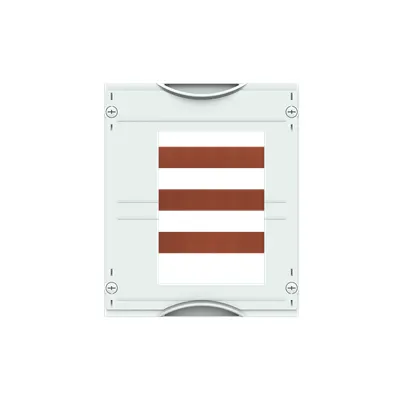

2CPX041825R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 215 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
440 A
Number of Poles
3P
Number of DIN Rails for Mounting
0
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
D02, E27, E33
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Fuse Type
D02
Mounting Type
Rail system
Mounting Orientation
Horizontal
Accessories Available
Yes
DIN Place Units
24
Meter Boards
0
Module Function
Busbar system 60 mm horizontal
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.928 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.965 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBR102-202
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002275 - Distributor assembly D-system fuse systems
ETIM 9
EC002275 - Distributor assembly D-system fuse systems
eClass
V11.0 : 27400621
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: 60 mm horizontal busbar alignment and 3P configuration maximize current handling up to 440 A while preserving cabinet real estate; this improves energy management efficiency and reduces panel depth. Application: suitable for large control panels demanding steady, expandable power distribution within 250 mm width and 300 mm height. Feature → Business Impact → Application: 24 DIN place units provide high-density mounting without compromising accessibility; benefit is modularity and faster replacement of components, reducing maintenance down-time in critical lines. Application: ideal for CombiLine interior panels where devices are added post-installation. Feature → Business Impact → Application: enclosure frame compatibility (WR or EDF) and horizontal mounting orientation simplify installation in existing layouts; benefit is lower retrofit risk and improved thermal performance. Application: supports retrofits and new builds with flexible mounting options. Feature → Business Impact → Application: RoHS and REACH compliance, plus CE declarations, ensure regulatory adherence and risk mitigation; benefit is streamlined procurement and reduced compliance audits. Application: procurement teams gain confidence when sourcing from ABB for regulated data centers and process industries. Feature → Business Impact → Application: covers D02 fuse type, E27 and E33 devices, and D02 compatibility, enabling tailored protection schemes; benefit is precise protection matching system requirements. Application: safe, compliant integration with customer-specified protection elements.
Get a Quick Quote for a ABB 2CPX041825R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041825R9999?
Enquire Now
FAQs
This interior fitting module is designed for horizontal 60 mm busbar systems within CombiLine panels. Plan for 24 DIN spaces and ensure the enclosure mounting frame is compatible (WR or EDF). The unit is unequipped for fuse switches; D02, E27, and E33 devices must be sourced separately and installed in the field according to the Mounting Type rail system.
Rated operational voltage is up to 400 V with a maximum rating of 400 V, and the module supports a rated current of 440 A across 3 poles. These specs suit medium-to-high power distribution tasks in industrial cabinets, enabling reliable load handling for equipment like motor starters and control circuits while maintaining safe operating margins.
Yes, the device is designed for DIN rail mounting as part of a modular distribution system. It provides 24 DIN Place Units, allowing dense packing of protective devices and busbar connections within a 250 mm wide by 300 mm high footprint for efficient panel design.
The module carries CE conformity and compliance declarations, plus RoHS and REACH declarations. It aligns with DIN EN 61439-3 and DIN EN 61439-2 standards, ensuring suitability for European distribution panels and strict safety requirements in industrial environments.
The design supports scalable expansions with 24 DIN spaces and horizontal 60 mm busbars, reducing rework during plant upgrades. Compliance with RoHS/REACH and CE lowers regulatory risks, while modular mounting minimizes maintenance downtime by enabling quick device swaps and future-proofing for evolving protection elements.
