ABB 2CPX041826R9999 Busbar System - DIN EN 61439-3
Part Number: 2CPX041826R9999
Quick Summary
ABB 2CPX041826R9999 Busbar System is a modular interior fitting module designed for 60 mm horizontal busbar layouts in CombiLine distribution panels. Engineers often struggle with optimizing space, fuse placement, and future expansion within tightly packed switchgear enclosures. This solution meets CE conformity, DIN EN 61439-3 standards, and RoHS requirements, reinforcing safety and long-term reliability in demanding environments. Its 48 DIN-Place capacity, 440 A rated current, and 400 V operating range enable scalable, compliant configurations, while lightweight plastic covers simplify installation and maintenance. The modular design supports horizontal busbar alignment with ZX146 holders and provides ready compatibility for expansion without cabinet redesign.
Product Information
Extended Description

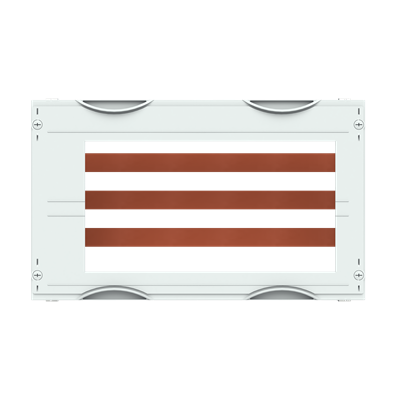

2CPX041826R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, , usuable width of 465 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
440 A
Number of Poles
3P
Number of DIN Rails for Mounting
0
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
D02, E27, E33
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Fuse Type
D02
Mounting Type
Rail system
Mounting Orientation
Horizontal
Accessories Available
Yes
DIN Place Units
48
Meter Boards
0
Module Function
Busbar system 60 mm horizontal
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
1.441 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.498 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBR102-202
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002275 - Distributor assembly D-system fuse systems
ETIM 9
EC002275 - Distributor assembly D-system fuse systems
eClass
V11.0 : 27400621
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: High-current capability of 440 A at 400 V. Business impact: Delivers safe, margin-rich power distribution for 3P loads in compact switchgear, reducing thermal stress and maintenance intervals. Application: Ideal for 60 mm horizontal busbar systems in CombiLine interior fitting modules used in industrial automation cabinets. Feature: 48 DIN Place Units. Business impact: Enables dense fuse block layouts, increasing panel capacity without adding cabinet depth. Application: Suitable for high-density distribution in modular distribution panels within factory automation and process control environments. Feature: Enclosure type interior fitting module with horizontal busbar alignment. Business impact: Improves installation efficiency and serviceability, with 90-degree closure and a durable light-grey (RAL 7035) enclosure. Application: Beneficial for retrofit projects and new builds in control rooms and machine aisles. Feature: Mounting frame options WR or EDF and included ZX146 busbar holders. Business impact: Provides flexible mounting and quick-scan alignment for reliable busbar routing, reducing commissioning time. Application: Works with standard 60 mm busbars and modular distribution panels. Feature: Compliance and accessibility. Business impact: Ensures RoHS, REACH, and CE conformity for safer procurement and regulatory compliance, lowering product lifecycle risk. Application: Suitable for global projects requiring DIN EN 61439-3 compliance and WEEE considerations.
