ABB 2CPX041830R9999 Busbar System - 400V/630A
Part Number: 2CPX041830R9999
Quick Summary
ABB 2CPX041830R9999 is a horizontal busbar system interior fitting module used in modular distribution panels. Many panel builders face limited enclosure depth, mismatched device mounting, and time-consuming wiring when expanding 3-pole distributions. The design emphasizes CE compliance, RoHS and REACH declarations, and adherence to DIN EN 61439-2/3 standards, reducing regulatory risk. With a 60 mm busbar center distance, 36 DIN places, and a built-in depth of 275 mm, it offers scalable capacity and faster assembly for control panels. This combination delivers predictable performance and long-term cost efficiency for industrial facilities. It integrates smoothly with ABB CombiLine components.
Product Information
Extended Description

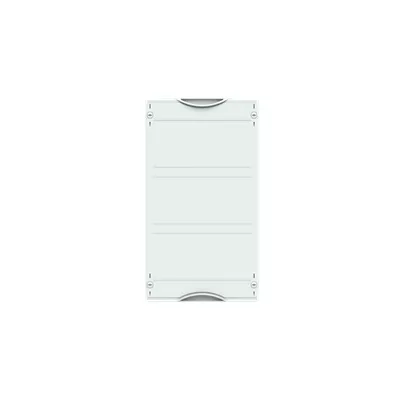

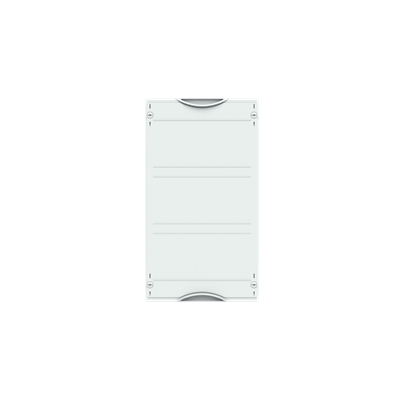

2CPX041830R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 165 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Number of Poles
3P
Number of Knife Blade Fuse Holders
0
Number of DIN Rails for Mounting
0
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
D02, E27, E33
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Fuse Type
Other
Mounting Type
Rail system
Mounting Orientation
Horizontal
Accessories Available
Yes
DIN Place Units
36
Meter Boards
0
Module Function
Busbar system 60 mm horizontal
Color
Light grey
Fuse Size
Other
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
260 mm
Section Width
1
Product Net Weight
1.5 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.5 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBR103-303 | Mounting instruction ED212-ED225
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
