ABB 2CPX041846R9999 Interior fitting module - DIN 61439-3
Part Number: 2CPX041846R9999
Quick Summary
The ABB 2CPX041846R9999 interior fitting module enables clean, scalable cable management inside modular distribution panels for industrial control cabinets. Customers grapple with cluttered wiring, limited service access, and retrofit downtime during panel reconfigurations. This ABB part carries DIN EN 61439-3 and DIN EN 61439-2 standards, along with CE conformity and RoHS/REACH compliance. Designed for interior mounting, it streamlines cable management for CombiLine and modular panels, delivering faster installation, reduced maintenance, and higher reliability. Manufacturers and integrators will appreciate compatibility with ABB accessory families, making this module a dependable choice for panel building and interior fitting applications. This combination shortens lead times in projects, minimizes dismantling, and simplifies regulatory reporting.
Product Information
Extended Description

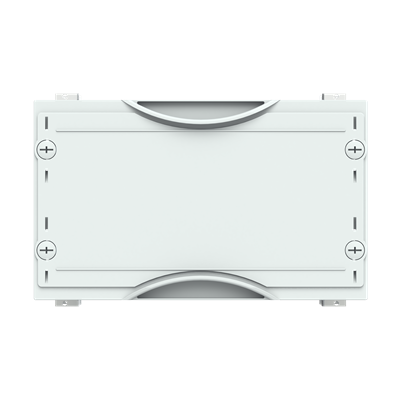

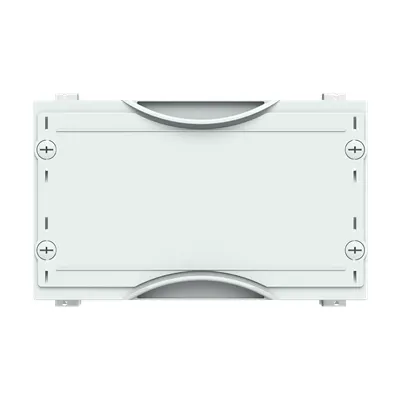

2CPX041846R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for cable fastening rail, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, , usuable depth of 122 mm up to 177 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 325 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
12
Meter Boards
0
Module Function
cable fastening rail
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
98bb239c-8916-49ed-a0f0-03c96aef77fc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
325 mm
Section Width
1
Product Net Weight
0.618 kg
Built-In Depth (t2)
325 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.642 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBF183-383
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: Interior fitting module with 12 DIN place units and a 250 mm width, 150 mm height, and 325 mm depth enables standardized cable routing and predictable panel layouts, reducing wiring complexity and installation time in CombiLine and modular distribution panels. Feature → Business Impact → Application: 90-degree press and turn closure with a closed plastic cover provides enhanced protection against dust and incidental contact, supporting longer maintenance intervals and more reliable operation in harsh industrial environments. Feature → Business Impact → Application: Compliance to DIN EN 61439-3/2, CE conformity, RoHS and REACH declarations minimizes regulatory risk and simplifies audits for European panel builders and OEMs, ensuring easier approvals in automation projects. Feature → Business Impact → Application: Lightweight construction (about 0.618 kg net, 0.642 kg packaged) reduces handling effort and shipping costs in high-volume panel builds, improving overall project efficiency. Feature → Business Impact → Application: Built for a 325 mm deep cabinet with 12 DIN units supports precise footprint planning and quick stock matching, accelerating cabinet assembly and expansion in control rooms and switchgear.
Get a Quick Quote for a ABB 2CPX041846R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041846R9999?
Enquire Now
FAQs
The interior fitting module is designed for CombiLine and supports 12 DIN Place Units, aligning with the 150 mm grid height and 250 mm panel width. It fits standard interior mounting frames WR or EDF, enabling predictable cabling layouts and simplified panel-building workflows.
Rated for up to 400 V operational voltage, the module uses WR or EDF enclosure mounting frames and is intended for interior fitting in modular distribution panels. This combination supports safe, compliant installation in European automation environments and reduces risk during commissioning.
Yes. The product aligns with DIN EN 61439-3 and 61439-2 standards, carries CE conformity, and adheres to RoHS and REACH declarations. This ensures regulatory compliance, simplifies audits, and supports sustainable material management in European control cabinets.
The module includes EU Declaration of Conformity for the CombiLine distribution panel system, RoHS status per Directive 2011/65/EU and 2015/863, REACH information, and SCIP registration. These documents streamline supplier qualification and regulatory reporting during procurement and installation.
The 12‑unit DIN footprint and lightweight design reduce installation time and handling effort, while standardized dimensions improve stock management and interchangeability. Together with regulatory compliance, these factors shorten project lead times and minimize rework, yielding measurable savings in labor and commissioning costs.
