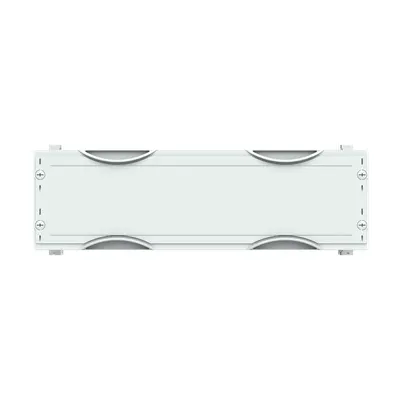

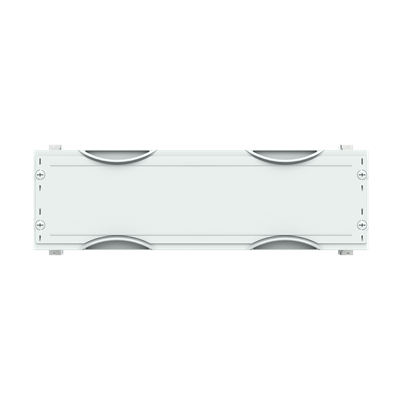

ABB 2CPX041847R9999 Interior fitting module-DIN EN 61439-2
Part Number: 2CPX041847R9999
Quick Summary
ABB 2CPX041847R9999 Interior fitting module enables organized cable management for modular distribution panels in control cabinets. Engineers often face cramped spaces, wiring cross-connections, and mounting challenges that slow projects. It meets DIN EN 61439-2/3, carries CE conformity, and satisfies RoHS requirements for safe, compliant panel assemblies. Ideal for CombiLine modular distribution panels and 24-place racks, it speeds cabinet assembly and simplifies future upgrades. This alignment reduces installation labor, minimizes fault-prone wiring, and supports scalable, serviceable cabinets across harsh industrial environments. Its 500 mm width and 24 DIN place units align with standard ABB CombiLine enclosures, ensuring straightforward integration with existing frames and cable management accessories.
Product Information
Extended Description
2CPX041847R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for cable fastening rail, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, , usuable depth of 122 mm up to 177 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 325 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
24
Meter Boards
0
Module Function
cable fastening rail
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
98bb239c-8916-49ed-a0f0-03c96aef77fc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
325 mm
Section Width
2
Product Net Weight
1.325 kg
Built-In Depth (t2)
325 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.378 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBF183-383
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Interior fitting module designed for CombiLine, 24 DIN places, and a 500 mm wide footprint delivers standardized space allocation, enabling faster cabinet layouts and easier scalability for future expansions. The integrated cable fastening rail centralizes wiring, reducing clutter and enabling quicker fault finding during maintenance, which translates to shorter downtimes and safer installations in busy control rooms. A 90-degree press-and-turn closure provides rapid access for repairs or rewiring without removing components, cutting discrete labor time while preserving enclosure integrity. Compliance features including DIN EN 61439-2/3, CE, RoHS, and REACH reduce regulatory risk and simplify procurement across global sites, supporting consistent builds across sites and streamlined supplier management. The enclosure supports WR or EDF mounting frames and accommodates a 325 mm built-in depth with usable 122–177 mm depth, matching common cabinet architectures for reliable installation in industrial environments. 24 DIN slots, 500 mm width, and 150 mm grid height align with typical CombiLine configurations, ensuring plug-and-play compatibility with existing frames and cable management accessories, which minimizes customization and accelerates project timelines.
