ABB 2CPX041848R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041848R9999
Quick Summary
ABB 2CPX041848R9999 interior fitting module enables streamlined cable management in modular distribution panels. Engineers frequently contend with tight cabinet footprints, blocked cabling trays, and lengthy reconfiguration when systems evolve. This design is built to DIN EN 61439-3 and CE standards, with RoHS/REACH declarations to mitigate regulatory risk. Leveraging CombiLine compatibility, 36 DIN places, and a 750 mm panel width, it enables scalable routing and faster maintenance. Together these features translate into lower installation costs, higher reliability, and easier asset management for panel builders.
Product Information
Extended Description

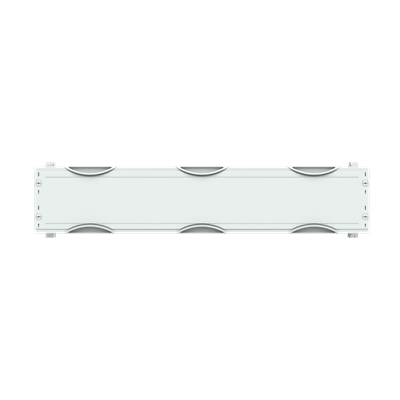

2CPX041848R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for cable fastening rail, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, , usuable depth of 122 mm up to 177 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 325 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
36
Meter Boards
0
Module Function
cable fastening rail
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
98bb239c-8916-49ed-a0f0-03c96aef77fc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
150 mm
Product Net Depth / Length
325 mm
Section Width
3
Product Net Weight
1.852 kg
Built-In Depth (t2)
325 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.926 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBF183-383
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 36 DIN place units provide ample space for circuitry, labeling, and future expansion. Business Impact: Reduces wiring congestion, speeds fault isolation, and supports incremental upgrades without re-engineering the enclosure. Application: Ideal for CombiLine interior fittings in machine building, process automation, and industrial control panels. Feature: Panel dimensions of 750 mm wide by 150 mm high by 325 mm deep optimize enclosure footprint. Business Impact: Improves fit within standard switchgear cabinets while preserving accessibility for maintenance. Application: Used in modular distribution panels and grid-based layouts. Feature: Cable fastening rail with a 90-degree closure and plastic cover in light grey (RAL 7035). Business Impact: Lowers dust ingress, enhances aesthetics, and speeds wiring during installation. Application: Suitable for cleanroom-adjacent or high-visibility panel installations. Feature: Enclosure mounting frame options WR or EDF ensure broad compatibility. Business Impact: Simplifies integration with existing cabinet frames and ABB CombiLine ecosystems. Application: Widely used in OEM and aftermarket panel builds. Feature: RoHS and REACH declarations with CE conformity and WEEE awareness. Business Impact: Supports regulatory compliance, sustainability goals, and risk mitigation. Application: Required for regulated projects in Europe and global expansions. Installation note: Mounting instructions MBF183-383 provide clear guidance for rapid deployment.
Get a Quick Quote for a ABB 2CPX041848R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041848R9999?
Enquire Now
FAQs
The installation works with the WR or EDF enclosure mounting frames and uses the 750 mm width, 150 mm height, and 325 mm depth to fit standard modular cabinets. Follow MBF183-383 mounting instructions to position the 36 DIN unit grid, attach the cable fastening rail, and secure the closed 90-degree closure for a robust, serviceable interior.
Key specs include 400 V maximum operating voltage, 36 DIN place units, 750 mm panel width, 150 mm height, 325 mm depth, light grey RAL 7035 color, and the internal cable fastening rail function. These parameters determine enclosure size, wiring density, accessibility, and the ease of future expansion within CombiLine cabinets.
Yes, the module supports up to 400 V operations. It complies with DIN EN 61439-3/2, CE declarations, RoHS and REACH requirements, and WEEE considerations. The device is designed for safe, standards-compliant installation in industrial control panels and distribution boards.
Absolutely. The 36 DIN place units align with a 750 mm width, 150 mm height, and 325 mm depth, enabling efficient cabling, labeling, and future expansion. The module is compatible with CombiLine interiors, using WR or EDF mounting frames for straightforward integration into modular panels.
The module provides organized cabling, faster fault isolation, and simpler upgrades, reducing installation time and field service costs. With standardized dimensions and mounting, maintenance tasks are quicker, downtime is minimized, and long-term asset management is improved due to consistent, compliant componentry.
