ABB 2CPX042014R9999 Busbar System Module - DIN EN 61439-3
Part Number: 2CPX042014R9999
Quick Summary
ABB 2CPX042014R9999 Busbar System Module provides centralized vertical distribution for large switchgear cabinets. When cabinet space is tight and wiring runs are complex, engineers need a modular path that simplifies busbar alignment and accelerates commissioning. It aligns with DIN EN 61439-3 and DIN EN 61439-2, while delivering RoHS and REACH declarations for modern industrial environments. The 96-DIN-space interior fitting module with a 600 mm x 500 mm footprint supports scalable capacity, predictable lead times, and easier procurement within modular distribution panel ecosystems, making it a practical choice for panel builders seeking reliable, compliant power distribution in confined spaces.
Product Information
Extended Description

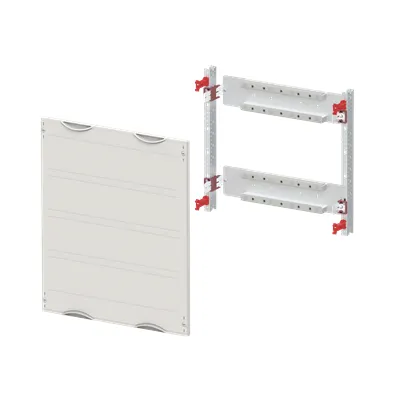

2CPX042014R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system vertical, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, unequipped for the installation of 1 , for busbar system 3-pole, Busbar alignment: Vertical and removable metering transformerunit, with busbar holders ZX520, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Rated Operational Current (Ie)
1000 A
Busbar Position
Center Central
Number of Poles
3P
Number of Switches
0
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Accessories Available
Yes
DIN Place Units
96
Module Function
Busbar system vertical
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
600 mm
Section Width
2
Product Net Weight
29.203 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.371 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBW103 MBW204
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 96 DIN place units, 600 mm x 500 mm footprint, 3P, rated current up to 1000 A, center central busbar position. Business Impact: enables high-density, scalable power distribution within compact cabinets, reducing overall enclosure width while preserving accessibility for maintenance. Application: ideal for center-fed vertical busbar systems in modular distribution panels used in industrial control rooms and switchgear bays. Feature: Interior fitting module with 90 degree press and turn closure and plastic covers in RAL 7035. Business Impact: enhances enclosure integrity, simplifies door operation, and improves safety and EMI shielding, lowering human factors risk during assembly and service. Application: suitable for factory automation cabinets where serviceability matters and color-coded interiors aid standardization. Feature: Removable metering transformer unit and ZX520 busbar holders; busbars ordered separately. Business Impact: offers flexible metering integration and tailored busbar configurations, reducing unnecessary inventory while enabling on-demand customizations. Application: supports compliance with modular CombiLine busbar layouts and selective metering requirements in energy management projects. Feature: RoHS, REACH, and CE declarations; WEEE considerations; EU declarations of conformity. Business Impact: ensures regulatory alignment and smoother procurement across regions, lowering compliance risk and lifecycle costs. Application: critical for regulated industries and multinational deployments. Feature: 400 V maximum operating voltage, 1000 A rated current, 3P, with 275 mm built-in depth. Business Impact: defines safe electrical envelopes for medium-voltage distribution with reliable short-circuit and fault handling, enabling faster panel commissioning. Application: suitable for large switchgear panels requiring robust, scalable busbar infrastructure.
Get a Quick Quote for a ABB 2CPX042014R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042014R9999?
Enquire Now
FAQs
Consider the 96 DIN space layout and the 275 mm built-in depth to plan equipment clearance and cable routing. Busbars must be ordered separately, and ZX520 busbar holders should be used for alignment. Follow mounting instructions MBW103 MBW204 for correct enclosure fit, and ensure the 3P configuration stays within the 400 V maximum rating.
The 3P design supports balanced three-phase distribution, while the 1000 A rating defines the maximum continuous load capacity. The 400 V maximum voltage limits input to typical medium-voltage panels and ensures safe operation within standard industrial distribution schemes. Verify conductor sizing and busbar ratings accordingly to maintain performance and protection coordination.
Yes. The unit carries RoHS information and EU declarations of conformity supporting RoHS Directive 2011/65/EU and its amendments, along with a REACH declaration. This helps streamline supplier qualification, regulatory reporting, and end-user acceptance across European and global markets, reducing procurement friction for compliant industrial automation projects.
Integration is supported through compatible busbar holders ZX520 and the module’s center central busbar alignment. Busbars must be ordered separately, and the 96 DIN space arrangement aligns with standard CombiLine grids. This enables scalable retrofits and upgrades within existing panel architectures without replacing entire enclosures.
The module’s modular, scalable design reduces incremental cabinet footprint and accelerates commissioning, leading to lower installed costs and faster project ROI. With robust RoHS/REACH/CE compliance, maintenance is infrequent and parts are readily sourced. The removable metering transformer unit further simplifies metering upgrades, minimizing downtime and extending service life.
