2CPX042017R9999
Part Number: 2CPX042017R9999
Product Information
Extended Description

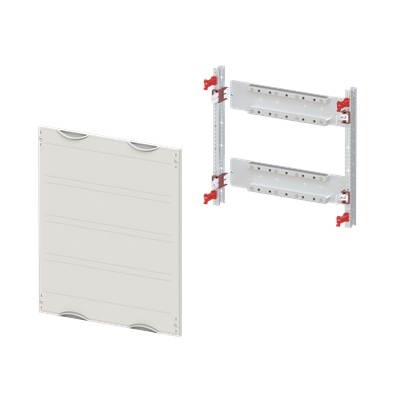

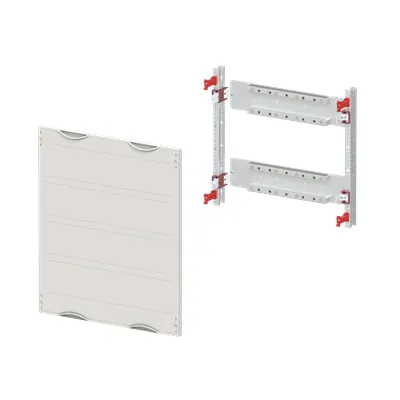

2CPX042017R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system vertical, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, unequipped for the installation of 1 , for busbar system 3-pole, Busbar alignment: Vertical and removable metering transformerunit, with busbar holders ZX520, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Rated Operational Current (Ie)
1000 A
Busbar Position
Center Central
Number of Poles
3P
Number of Switches
0
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Accessories Available
Yes
DIN Place Units
96
Module Function
Busbar system vertical
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
600 mm
Section Width
2
Product Net Weight
4.659 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.845 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
