ABB 2CPX042024R9999 Copper Busbar Connection Set - 360 A
Part Number: 2CPX042024R9999
Quick Summary
ABB 2CPX042024R9999 copper busbar connection set powers modular CombiLine panels in cabinet power distribution. When expanding a panel, space constraints, heat buildup, and connection reliability are common pain points that slow projects and increase risk. This product carries a CE Declaration of Conformity, RoHS and REACH compliance, and aligns with DIN 43673-1, ensuring regulatory readiness and long-term reliability. By design, it supports compact installations and straightforward mounting, reducing install time and field support needs. The solution also complements other ABB CombiLine components, delivering consistent performance and predictable results for panel builders seeking robust, scalable power distribution.
Product Information
Extended Description

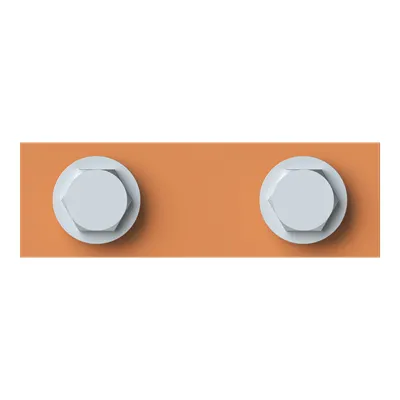

2CPX042024R9999 ABB: Copper busbar connection set, CombiLine, Modular distribution panel not assembled, rated current maximum 360 A
Rated Current (In)
360 A
Number of Poles
1P
Connection Type
Cabinet / Cabinet
Enclosure Type
Copper busbar connection set
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
94 mm
Product Net Height
16 mm
Product Net Depth / Length
88 mm
Product Net Weight
0.306 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.318 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX1182-..86 / ZX1192-..96
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
Standards
DIN 43673-1
Feature 360 A rated current → Business Impact Enables high-load distribution with reduced busbar heating and voltage drop, increasing panel capacity without expanding footprint → Application CombiLine modular distribution panels in control cabinets. Feature 1P pole configuration → Business Impact Minimizes unnecessary hardware in single-pole segments while delivering reliable single-channel power distribution → Application Cabinet-to-cabinet connections in compact layouts. Feature Cabinet / Cabinet connection type → Business Impact Promotes secure, enclosed wiring paths that simplify compliance and containment of conductors → Application Modular panels in space-constrained installations. Feature Copper busbar enclosure → Business Impact Copper’s low resistance improves efficiency and reduces energy losses, supporting cooler operation and longer component life → Application High-current distribution within ABB panels. Feature RoHS Information, RoHS Status, REACH Declaration → Business Impact Ensures regulatory compliance and smoother procurement with traceable material declarations → Application System-wide compliance for industrial control environments. Feature Product Net Width 94 mm, Net Height 16 mm, Net Depth 88 mm → Business Impact Small footprint enables dense installations and easier retrofits, lowering enclosure costs → Application Space-efficient panel layouts and retrofit projects. Feature Mounting Instructions ZX1182-..86 / ZX1192-..96 → Business Impact Clear installation guidance reduces commissioning time and human error → Application Quick-start for panel builders and service teams. Feature DIN 43673-1, ETIM 8/9 alignment → Business Impact Standardized classifications improve cross-brand compatibility and data accuracy in procurement systems → Application Improved sourcing, maintenance planning, and asset management for industrial networks.
Get a Quick Quote for a ABB 2CPX042024R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042024R9999?
Enquire Now
FAQs
Yes. This copper busbar connection set is designed for CombiLine modular distribution panels and supports cabinet-to-cabinet connections. Mounting instructions ZX1182-..86 and ZX1192-..96 provide clear steps to ensure secure integration within ABB panel ecosystems.
The unit is rated for 360 A with a 1P configuration. It uses a copper busbar connection set enclosure, provides a compact footprint (94 mm width, 16 mm height, 88 mm depth), and weighs about 0.306 kg, supporting efficient, high-current distribution in space-constrained panels.
Yes. Its compact net dimensions and copper busbar design minimize resistance and heat, enabling reliable performance in dense installations. The 360 A rating supports substantial loads per pole, making it appropriate for modular ABB CombiLine systems in modern control cabinets.
This component features CE Declaration of Conformity, RoHS information and status with 2011/65/EU and 2015/863 amendments, REACH declarations, and DIN 43673-1 compliance, plus WEEE considerations. ETIM classifications EC000713 for busbar couplers and DIN standards support consistent procurement and documentation.
The included mounting instructions and DIN-standard compatibility reduce commissioning time and field errors. Its durable copper construction lowers resistance losses, contributing to energy efficiency, improved reliability, and lower maintenance costs over the panel’s lifecycle, delivering tangible ROI for panel builders and maintenance teams.
