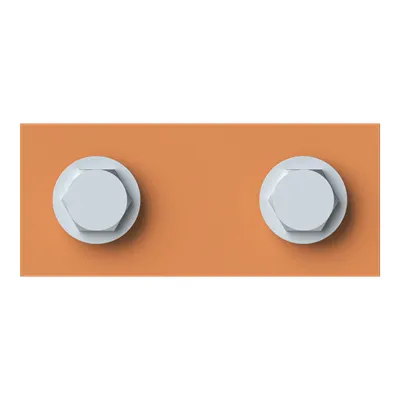

ABB 2CPX042025R9999 Copper Busbar Connection Set - 850 A

Feature: rated current up to 850 A. This high current capability translates to fewer parallel components in the panel, reducing BOM complexity and improving thermal management by concentrating conductors in a single robust path. In practice, panel designers can rely on a dedicated copper busbar connection set to carry full load, enabling more compact spacing and shorter conductor runs in CombiLine modular distribution panels. Feature: 1P cabinet-to-cabinet connection. The single-pole design simplifies harness routing and minimizes connection points, which lowers contact resistance and improves reliability under dynamic switching conditions. For installations with tight cabinet footprints, this approach supports straightforward topology and faster assembly, reducing commissioning time for field teams. Feature: copper busbar construction. Copper offers superior conductivity and temperature resilience, resulting in lower resistance, reduced heat rise, and improved efficiency over alternatives. This is especially valuable in continuous processes where thermal stability translates to higher uptime and predictable current sharing across feeders within CombiLine systems. Feature: compact dimensions and light weight (95x94x18 mm; 0.348 kg). The compact footprint minimizes space penalties in crowded switchgear and enables easier handling during installation, testing, and retrofits. Coupled with cabinet-to-cabinet compatibility, it supports modular expansion without reengineering existing layouts. Feature: comprehensive compliance and declarations (RoHS, REACH, WEEE) and DIN 43673-1 ETIM classifications. This alignment reduces regulatory risk, eases supplier qualification, and supports audit readiness in regulated industries such as energy, process manufacturing, and data centers. Feature: documented mounting instructions ZX1182-..86 / ZX1192-..96. Clear mounting guidance accelerates installation, reduces errors, and improves repeatability across multiple projects. Manufacturers benefit from faster deployment, predictable performance, and easier maintenance planning when integrating this component into ABB CombiLine panels.
