ABB 2CPX042034R9999 EDS Meter - DIN EN 61439-3
Part Number: 2CPX042034R9999
Quick Summary
ABB 2CPX042034R9999 EDS Meter is an interior fitting module used to monitor energy in modular CombiLine distribution panels. Panel builders struggle with space optimization, wiring complexity, and regulatory complexity across projects. The solution carries CE conformity and RoHS/REACH declarations, aligned with DIN EN 61439-3 and 61439-2, providing strong regulatory assurance. It also features a compact 250 mm width, 300 mm height, and 24 DIN spaces for scalable installations. This combination delivers faster assembly, easier maintenance, and lower total cost of ownership, while supporting reliable energy measurement in industrial control cabinets.
Product Information
Extended Description

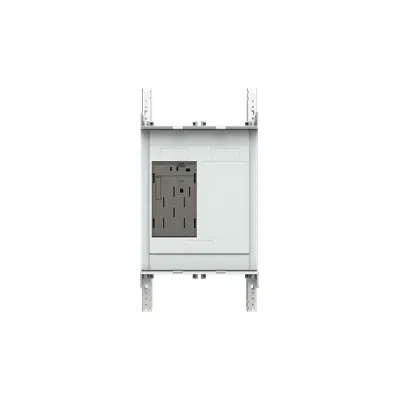

2CPX042034R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for EDS meter, Grid unit 3 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Model Number
eHZ
Number of Phases
3
Number of TSG Panels
0
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Meter Type
eHZ
Protection Type
None
Accessories Available
Yes
DIN Place Units
24
Module Function
EDS meter
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
1.165 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.212 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBZ162/163
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Compact footprint with 24 DIN spaces; Benefit: Maximizes cabinet real estate and enables scalable energy monitoring in compact compartments; Application: Suitable for 3-phase energy measurement in 24-unit grid modules within CombiLine panels. Feature: 3-phase operation with rated 400 V; Benefit: Supports standard industrial power systems with reliable monitoring and safety margins; Application: Ideal for industrial control cabinets requiring robust energy measurement. Feature: Interior fitting module with WR mounting frame; Benefit: Simplifies installation and guarantees secure mounting in modular panels; Application: Seamless integration into CombiLine distribution panels. Feature: Material and finish (RAL 7035 light grey); Benefit: Durable, visually consistent enclosures that ease maintenance and inventory management; Application: Factory and plant floors with standardized aesthetics. Feature: RoHS/REACH compliant and CE declaration; Benefit: Reduces regulatory risk and accelerates time-to-compliance; Application: Global deployment across multiple markets. Feature: 24 accessories available and Mounting instruction MBZ162/163; Benefit: Extended configurability and clear installation guidance; Application: Panel builders seeking fast, repeatable assembly.
