ABB 2CPX042043R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX042043R9999
Quick Summary

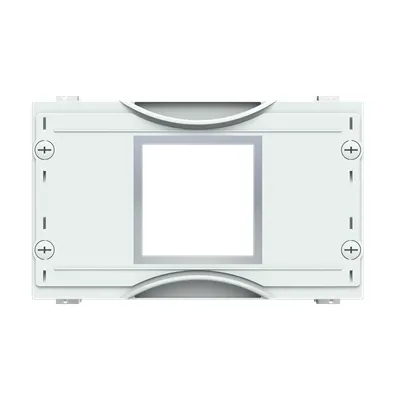

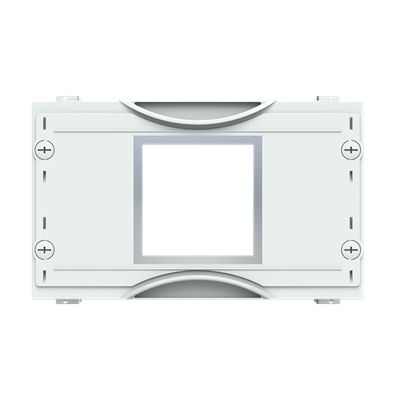

ABB 2CPX042043R9999 interior fitting module is a compact enclosure component designed for measuring devices within CombiLine distribution panels. It addresses common cabinet-space challenges by offering a fixed-mount, 12-DIN footprint that fits neatly into modular panels. The design aligns with CE conformity and DIN EN 61439-3/2 standards, while RoHS and REACH declarations ensure material compliance. This solution delivers predictable installation outcomes and streamlined sourcing, reducing lead times for panel builders and distributors while supporting reliable, standards-based cabinet construction for industrial systems.
Product Information
Extended Description
2CPX042043R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Measuring device, 12 Space units, Fixed mounting, unequipped for the installation of 1 Cabinet light 96x96, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
96x96
Enclosure Type
Interior fitting module
Mounting Type
Fixed mounting
DIN Place Units
12
Module Function
Measuring device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
225 mm
Product Net Weight
1.638 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.72 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBU157-158
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 12 DIN space units and 96x96 device mounting provide a standardized footprint for measuring devices. Benefit: Simplifies panel design and procurement, speeding up assembly and reducing the risk of incompatibilities in modular cabinets. Application: Ideal for CombiLine interior fittings in control cabinets where space planning and device interoperability are critical. Feature: Fixed mounting and interior fitting module design. Benefit: Improves enclosure rigidity and serviceability, enabling safer commissioning and easier future maintenance. Application: Widely used in modular distribution panels demanding durable, vibration-resistant housing for measurement equipment. Feature: Built-in depth of 225 mm and a usable cabinet depth of 225 mm. Benefit: Enables accurate space planning within compact panel housings, minimizing overhang and enclosure clashes. Application: Suitable for tight control rooms and compact switchgear installations. Feature: Color and closure details (Light grey, 90-degree press and turn closure). Benefit: Consistent aesthetics with standard 7035 gray enclosures and quick, tool-free access for installation and servicing. Application: Serves industries requiring fast enclosure access without compromising protection. Feature: Compliance and declarations (CE, RoHS, REACH). Benefit: Ensures regulatory alignment and traceability for regulated markets, reducing compliance risk. Application: Critical for panel builders targeting European markets and customers with strict material requirements. Feature: Accessories and mounting frame compatibility (WR or EDF). Benefit: Enhances installation flexibility and adaptivity to existing cabinet frames. Application: Useful when upgrading or retrofitting existing distribution panels.
Get a Quick Quote for a ABB 2CPX042043R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042043R9999?
Enquire Now
FAQs
This interior fitting module is designed for fixed mounting within CombiLine distribution panels and supports 12 DIN space units with 96x96 device footprints. Ensure the enclosure frame is WR or EDF compatible, and verify the 225 mm built-in depth fits the cabinet depth. Mounting hardware is compatible with standard 90-degree closures for easy access during commissioning.
Key specs include a rated operational voltage up to 400 V, a 12-DIN footprint, 96x96 device mounting, and a 225 mm inner depth. The module weighs about 1.638 kg and is designed for interior fitting, with fixed mounting and a light grey RAL 7035 finish. These attributes support reliable device mounting and consistent cooling within compact enclosures.
Yes. The 12-DIN, 96x96 footprint is tailored for measuring devices within modular distribution panels. Its fixed mounting and 225 mm depth support compact, industry-standard cabinet configurations (CombiLine) while maintaining accessibility and serviceability. This makes it ideal for panel builders needing a predictable, standardized housing for measuring equipment.
The module is CE-marked with an EU Declaration of Conformity for Distribution Panel System CombiLine N. It aligns with DIN EN 61439-3 and DIN EN 61439-2 standards, and carries RoHS and REACH declarations. WEEE is noted as not in scope. These certifications help ensure regulatory compliance and traceability for European customers.
Adopting this module reduces sourcing complexity thanks to a fixed DIN footprint and standardized mounting, shortening assembly time and improving interchangeability. The RoHS/REACH compliance minimizes regulatory risk, while the EN 61439 certifications support safer, long-term operation. Built for ease of maintenance, it also enables quicker cabinet upgrades and future scalability in automated environments.
