ABB 2CPX042102R9999 Busbar System - DIN EN 61439-3
Part Number: 2CPX042102R9999
Quick Summary
Busbar System ABB 2CPX042102R9999 provides a compact interior fitting module for modular distribution panels in industrial control cabinets. Engineers often struggle with space, wiring accessibility, and safe busbar alignment when expanding or upgrading panels. This module meets DIN EN 61439-3 and DIN EN 61439-2 standards, CE conformity, and RoHS requirements for reliable compliance. Together with 250 A rated current, 25 kA breaking capacity, and a compact footprint, it enables safer, more efficient cabinet designs while simplifying procurement. For project teams, the modular Versatility and 36 DIN places streamline installation, reduce field adjustments, and support scalable layouts. This translates to lower lifecycle costs and faster commissioning.
Product Information
Extended Description

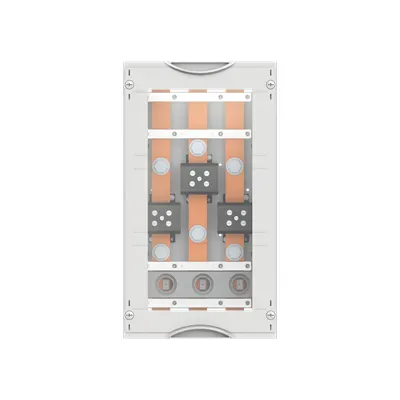

2CPX042102R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system vertical, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, equipped with Mounting fuse socket E27, Equipment manufacturer: , , with busbar system 3-pole, Busbar alignment: Vertical and removable metering transformerunit, with busbar holders ZX146, with 3 Cu busbars, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with transparent cover, usuable as of the cabinet depth of 215 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Rated Service Short-Circuit Breaking Capacity (Ics)
25 kA
Busbar Position
Center Central
Number of Poles
3P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
E27
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Module Function
Busbar system vertical
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
4.804 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.996 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBW250A/MBA250ALO
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 3-pole center-central busbar arrangement with 3 Cu busbars, rated 250 A. Benefit: Ensures consistent current distribution and safe fault handling in three-phase systems, reducing voltage drop and maintenance time. Application: Ideal for vertical distribution in industrial control cabinets and modular distribution panels. Feature: 36 DIN place units, 250 mm width, 450 mm height, 200 mm depth with built-in depth of 215 mm. Benefit: Maximizes cabinet space, simplifies labeling and cable routing, and supports scalable layouts without enlarging the enclosure footprint. Application: Fits compact CombiLine panels in production lines and facility automation. Feature: Mounting fuse socket E27, 90-degree press-and-turn closure, and optional transparent cover. Benefit: Accelerates fuse mounting and inspection, reduces downtime, and enhances visual safety during maintenance. Application: Critical in serviceable power distribution areas inside control cabinet racks. Feature: Enclosure mounting frame options WR or EDF, interior fitting module, and 3 Cu busbars. Benefit: Provides flexible integration with standard ABB frames, lowers installation time, and ensures robust mechanical compatibility. Application: Seamless in both new builds and retrofit projects. Feature: RoHS and REACH declarations with CE conformity and DIN EN 61439-3/2 compliance. Benefit: Streamlines procurement and regulatory documentation, reducing risk and audit effort. Application: Preferred for regulated manufacturing environments and certified installations.
