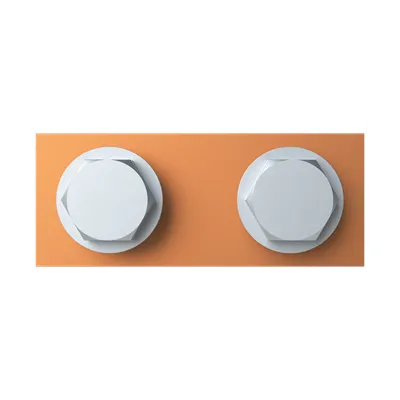

ABB 2CPX042106R9999 Copper Busbar Connector - 440 A RoHS
Part Number: 2CPX042106R9999
Quick Summary
ABB 2CPX042106R9999 copper busbar connection set provides reliable high-current interconnections for modular distribution panels. Engineers often confront tight cabinet spaces and inconsistent contact quality that can undermine reliability and service life. The product complies with CE declarations of conformity, RoHS directives, and REACH requirements, aligning with DIN standards for busbar connections. This solution supports regulatory-ready installations in factory automation and panel-building workflows, delivering compact efficiency and dependable performance within ABB CombiLine systems.
Product Information
Extended Description
2CPX042106R9999 ABB: Copper busbar connection set, CombiLine, Modular distribution panel not assembled, rated current maximum 440 A
Rated Current (In)
440 A
Number of Poles
1P
Connection Type
Cabinet / Cabinet
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
83 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Product Net Weight
0.102 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.106 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX1182-..86 / ZX1192-..96
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
Standards
DIN 43673-1
Feature → Business Impact → Application. The 440 A rated current delivers robust power paths for single-pole connections, improving system efficiency and reducing heat generation in demanding panel environments, which translates to longer service life and lower maintenance costs for automated lines and switchgear. Application: high-current cabinet interconnections in modular distribution panels. The copper busbar construction provides low contact resistance, minimizing energy losses and enhancing reliability in continuous operation across industrial facilities. Application: ABB CombiLine modular panels and similar cabinet assemblies. The compact footprint – 83 mm wide, 30 mm high, 5 mm deep – saves valuable panel space, enabling denser layout and easier integration with existing rack architectures. Application: space-constrained control cabinets. The 1P, cabinet-to-cabinet connection type simplifies wiring schemes and reduces assembly time while maintaining safe, robust fault paths. Application: quick-install, single-pole busbar hookups in new builds and retrofits. Compliance and standards alignment – RoHS, REACH, CE – lowers regulatory risk and supports traceable sourcing for regulated environments. Application: regulated industrial automation projects. Mounting instructions ZX1182-..86 / ZX1192-..96 provide clear installation guidance, and the data sheet offers comprehensive technical information for procurement and quality assurance. Application: professional panel builders and integrators. In-service insights show that compatible busbar sets like this one reduce inventory fragmentation and streamline BOM management across large automation programs.
Get a Quick Quote for a ABB 2CPX042106R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042106R9999?
Enquire Now
FAQs
The 2CPX042106R9999 is a copper busbar connection set designed for CombiLine modular distribution panels. It provides a robust 440 A single-pole interconnection between cabinet segments, delivering low resistance paths, compact footprint, and reliable performance in industrial automation enclosures.
Follow the mounting instructions ZX1182-..86 and ZX1192-..96 for proper orientation and fastening. Ensure clean copper contacts, correct alignment with adjacent busbars, and tighten to the specified torque per the mounting guides. The compact 83 × 30 × 5 mm footprint fits constrained cabinet spaces while maintaining a secure, durable connection.
Yes. It carries EU RoHS documentation with a conformity declaration and RoHS status aligned to Directive 2011/65/EU and the 2015/863 amendment, plus a REACH declaration indicating no substances above 0.1 mass percent. This helps reduce regulatory risk in regulated manufacturing environments.
Product Net Width is 83 mm, Net Height is 30 mm, and Net Depth is 5 mm. The Net Weight is 0.102 kg, with a package gross weight of 0.106 kg per pack. These metrics support precise space planning in panel builds and straightforward logistics handling.
The product aligns with DIN 43673-1 for busbar couplers and supports ETIM 8 and ETIM 9 EC000713, as well as eClass V11.0 27400606. It is categorized under WEEE, with a Small Equipment designation (Category 5) and a U Object Classification Code, reinforcing compliance in European electrical environments.
