ABB 2CPX042109R9999 Busbar Connection Set - DIN 43673-1
Part Number: 2CPX042109R9999
Quick Summary
ABB 2CPX042109R9999 is a copper busbar connection set designed for cabinet-to-cabinet power distribution in CombiLine modular panels. Engineers often face tight spaces and high-current terminations that can elevate heat, fault risk, and maintenance overhead. This part aligns with CE marking, RoHS compliance, and the DIN 43673-1 busbar coupling standard, ensuring regulatory conformity and interoperability in modern switchgear. With an 83 mm by 40 mm by 10 mm footprint and an 850 A rating, it delivers compact, scalable performance for dense panel layouts. The combination of compact size and robust current capability reduces installation time, lowers wiring complexity, and supports safer, cost-efficient panel designs across diverse industrial environments.
Product Information
Extended Description

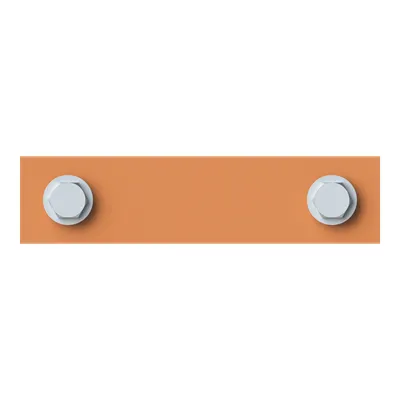

2CPX042109R9999 ABB: Copper busbar connection set, CombiLine, Modular distribution panel not assembled, rated current maximum 850 A
Rated Current (In)
850 A
Number of Poles
1P
Connection Type
Cabinet / Cabinet
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
83 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.127 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.132 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX1182-..86 / ZX1192-..96
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current up to 850 A; Business Impact: enables reliable high-load distribution with minimal voltage drop and thermal buildup; Application: CombiLine modular distribution panels in space-constrained switchgear. Feature: Copper busbar construction; Business Impact: provides low impedance, superior conductivity, and long-term thermal stability; Application: cabinet-to-cabinet terminations in harsh industrial environments. Feature: Compact footprint of 83 × 40 × 10 mm; Business Impact: frees valuable cabinet space, simplifies cable routing, and reduces overall panel height; Application: modular panel assemblies with tight enclosure tolerances. Feature: RoHS, REACH, and WEEE compliance; Business Impact: supports regulatory conformity, safer disposal, and easier supplier auditing; Application: procurement for global manufacturing plants seeking sustainable compliance. Feature: Mounting compatibility with ZX1182-..86 / ZX1192-..96 instructions; Business Impact: accelerates installation, minimizes errors, and standardizes assembly work; Application: field and panel-builder installation workflows. Feature: 1 piece per package with 0.127 kg weight; Business Impact: predictable BOM planning and easy inventory management; Application: streamlined procurement and logistics for panel manufacturing.
