ABB 2CPX042110R9999 Busbar System - DIN EN 61439-3
Part Number: 2CPX042110R9999
Quick Summary
ABB 2CPX042110R9999 Busbar System is an interior fitting module designed for 100 mm NH00-disconnector cabinets, enabling compact, high-density three-pole protection. Engineers frequently struggle with space constraints and complex wiring in cabinet assemblies; this unit simplifies mounting on a 36-DIN-Place grid, reducing install time and risk. The design aligns with DIN EN 61439-3 and 61439-2, and it carries RoHS and REACH declarations to support compliance and traceability across European supply chains. With a nominal current rating of 850 A, horizontal busbar alignment, and ready compatibility for Cu busbars (ordered separately), it delivers reliable protection while trimming lifecycle costs.
Product Information
Extended Description

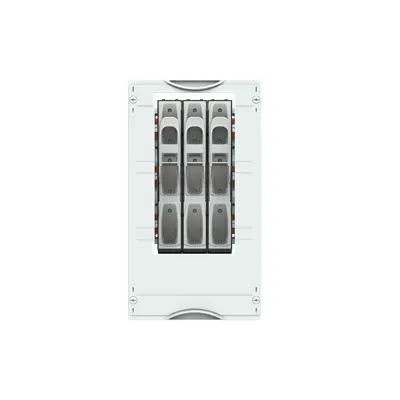

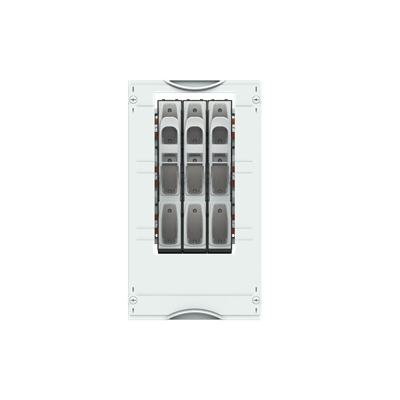

2CPX042110R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 100 mm NH00-disconnector, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 150 mm, equipped with 3 NH-fuse disconnector NH00, Equipment manufacturer: ABB, InLine II ZLBM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 215 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
3
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
3
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Rail system
DIN Place Units
36
Module Function
Busbar system 100 mm NH00-disconnector
Color
Light grey
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b178f49b-e7c1-435c-813e-dad4ccb01335 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
131 mm
Section Width
1
Product Net Weight
4.605 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.789 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Integrated 3NH00 fuse switch disconnectors are housed within the interior fitting module, reducing assembly steps and potential miswiring. Business impact: Fewer components mean faster panel assembly, lower labor costs, and improved documentation traceability for commissioning. Application: Suitable for ABB CombiLine busbar systems in distribution panels where safe, repeatable disconnections are required across three poles. Feature: 100 mm busbar center distance with horizontal alignment supports clean, predictable busbar routing. Business impact: Enables secure mounting of up to three copper busbars with minimal risk of misalignment or contact interference. Application: Ideal for 3-pole configurations in industrial switchgear requiring consistent spacing to meet cable routing and clearance standards. Feature: 3 DIN place units and a built-in depth of 215 mm define a compact footprint (250 mm width, 450 mm height) for space-constrained panels. Business impact: Predictable enclosure fit reduces design time and rework while ensuring compatibility with standard cabinet dimensions. Application: Perfect for panel builders integrating with 36-DIN rail systems in industrial control rooms and factory automation environments. Feature: RoHS and REACH declarations plus DIN EN 61439-3 and 61439-2 compliance provide robust regulatory alignment. Business impact: Accelerates customer approvals, minimizes lifecycle risk, and supports sustainability reporting across supply chains. Application: Suited for end-users seeking compliant, traceable components for European regulatory programs and large-scale installations. Feature: Durable light-grey plastic covers, 90-degree press and turn closure, and RAL 7035 finish simplify maintenance and field service. Business impact: Improves ingress protection, reduces service time, and maintains consistent aesthetics across panel assemblies. Application: Beneficial in environments where quick access and clear identification are essential for uptime and safety.
