ABB 2CPX042111R9999 Busbar system interior fitting module - DIN EN 61439-3
Part Number: 2CPX042111R9999
Quick Summary
ABB 2CPX042111R9999 Busbar system interior fitting module enables safe 3‑pole NH00 fuse disconnector integration inside 100 mm busbar panels. Engineers and procurement teams often battle space constraints, misalignment, and compliance risk during cabinet builds. This module aligns with DIN EN 61439-3 (and related DIN EN 61439-2) and carries CE, RoHS and REACH declarations to simplify regulatory readiness. Designed for ABB CombiLine busbar configurations, it unlocks efficient installation with precise rail mounting and horizontal busbar alignment, featuring ZX520 busbar holders and a 100 mm center distance. With 72 DIN place units and a robust 850 A rating at 400 V, the enclosure supports scalable panel design, reduces field adjustments, and speeds serviceability for growing electrical distributions.
Product Information
Extended Description

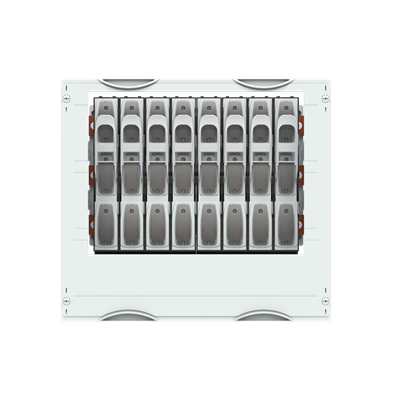

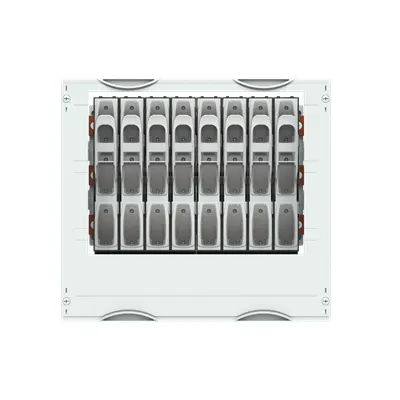

2CPX042111R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 100 mm NH00-disconnector, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 400 mm, equipped with 8 NH-fuse disconnector NH00, Equipment manufacturer: ABB, InLine II ZLBM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 215 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
8
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
8
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Rail system
DIN Place Units
72
Module Function
Busbar system 100 mm NH00-disconnector
Color
Light grey
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b178f49b-e7c1-435c-813e-dad4ccb01335 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
131 mm
Section Width
2
Product Net Weight
10.274 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.685 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module designed for the Busbar system 100 mm NH00-disconnector. Business Impact: Enables safer, compliant, scalable cabinet installations with precise alignment and modular expandability. Application: Ideal for 3P distribution panels in industrial control cabinets, where reliable busbar integration matters. Feature: 72 DIN place units and horizontal busbar alignment using ZX520 holders. Business Impact: Maximizes usable space and simplifies device placement, reducing commissioning time. Application: Suitable for complex panel layouts where space optimization and orderly wiring are critical. Feature: Enclosure mounted on WR or EDF frame with 500 mm width and 450 mm height. Business Impact: Enhances mounting stability and compatibility with standard ABB grid units, lowering installation labor. Application: Facilitates rapid retrofit or expansion in existing control rooms. Feature: RoHS and REACH compliant with CE declaration. Business Impact: Lowers regulatory risk and accelerates procurement approvals. Application: Fits regulated environments requiring traceable material compliance. Feature: 8 NH00 fuse switch disconnectors and 850 A rated current at 400 V. Business Impact: Supports high‑demand protection schemes while maintaining safe dissipation paths. Application: Suitable for heavy‑duty, 3P distribution panels in industrial facilities. Feature: 500 mm width, 450 mm height, 131 mm depth with 215 mm built‑in depth and 10.274 kg weight. Business Impact: Predictable footprint simplifies cabinet design and ballast planning. Application: Readily matches standard cabinet depths and supports scalable configurations.
