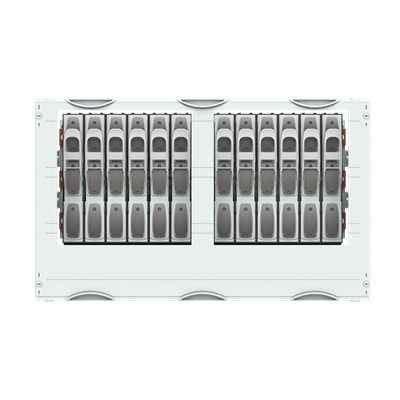

ABB 2CPX042112R9999 Busbar NH00 Disconnector DIN EN 61439-3

Feature 100 mm NH00-disconnector busbar system inside the interior fitting module enables high-density power distribution while simplifying fuse integration. This reduces cabinet complexity and speeds up assembly for panel builders, lowering installation time in distribution panels for manufacturing and process automation. The 3P configuration supports common control panel layouts with 12 mountable devices and space for up to three copper busbars, ensuring scalable power distribution in compact footprints. Feature High current rating provides 850 A, supporting heavy loads and improving equipment uptime in demanding environments. The 3P NH00 arrangement simplifies protective coordination and fault isolation, reducing maintenance time. Application This configuration is ideal for motor control centers and distribution panels in industrial automation. Feature 108 DIN place units and rail-mounted enclosure offer a predictable layout that simplifies planning and retrofits. Built-in depth of 225 mm and width of 750 mm enable compact cabinet designs without compromising access to fuses or busbars. ZX520 busbar holders ensure precise alignment for up to three copper busbars, elevating assembly accuracy. Feature Compliance and materials reduce risk and streamline procurement. RoHS and REACH declarations, along with WEEE classification, support regulatory compliance across regions, while CE marking confirms conformity to safe distribution panel standards. These features translate into lower audit findings and smoother customer acceptance in project bids. Feature Enclosure finish and dimensions deliver durability and aesthetics. Light grey panels (RAL 7035) with a 90-degree press-and-turn closure simplify maintenance and service access. Overall, the module integrates with the ABB CombiLine ecosystem to shorten commissioning time and improve total cost of ownership.
