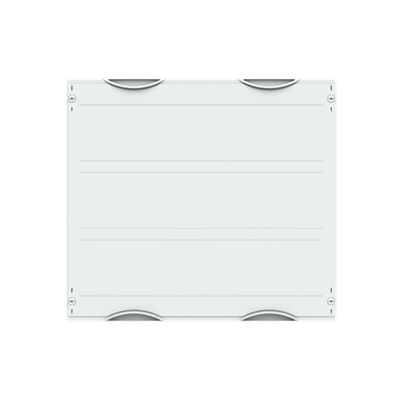

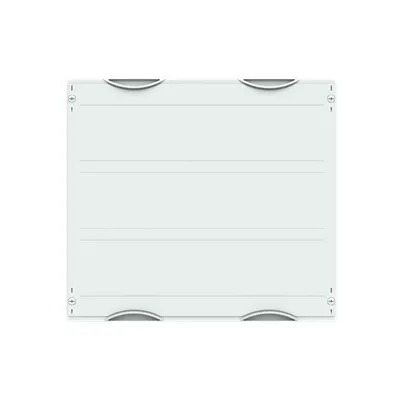

ABB 2CPX042114R9999 Busbar system 100 mm NH00-disconnector - DIN EN 61439-2
Part Number: 2CPX042114R9999
Quick Summary
ABB 2CPX042114R9999 busbar system provides an interior fitting module for NH00 disconnectors in switchgear. Installing large busbar assemblies often demands precise alignment and can slow commissioning. This module is designed to meet DIN EN 61439-2 and 61439-3 standards and carries RoHS and REACH declarations to support compliant panel builds. With a 3P configuration and an 850 A rating, plus 72 DIN place units and a usable 400 mm busbar width, it enables compact, scalable distributions while reducing integration risk and maintenance overhead for industrial automation projects and electrical installations.
Product Information
Extended Description
2CPX042114R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 100 mm NH00-disconnector, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 400 mm, unequipped for the installation of 8 NH-fuse disconnector NH00, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 215 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
8
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Rail system
DIN Place Units
72
Module Function
Busbar system 100 mm NH00-disconnector
Color
Light grey
Fuse Size
Other
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b178f49b-e7c1-435c-813e-dad4ccb01335 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
131 mm
Section Width
2
Product Net Weight
1.872 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.947 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Interior fitting module for a 100 mm NH00-disconnector busbar system provides a defined mounting path and 72 DIN place units. That structure delivers predictable assembly times, safer busbar alignment, and reduced risk of miswiring. Designed for panel builders and system integrators, it supports 3P distribution with up to eight mountable devices. Horizontal busbar alignment with a 100 mm center distance simplifies copper bar layout, reducing installation errors and speeding cabinet readiness. The 850 A rated current capability supports demanding loads, enabling compact layouts without compromising protection, ideal for industrial lines and data-center cabinet sections. Flexible enclosure mounting with WR or EDF frames ensures straightforward retrofits in existing cabinets and new builds alike. RoHS and REACH declarations plus DIN EN 61439-2/3 compliance provide regulatory confidence, while a 500 mm width and 450 mm height accommodate complex busbar schemes. The 72 DIN places and a built-in depth of 215 mm enhance integration of devices and accessories while maintaining serviceability and future expandability.
