ABB 2CPX042118R9999 Busbar System - DIN EN 61439-3 Certified
Part Number: 2CPX042118R9999
Quick Summary
ABB 2CPX042118R9999 busbar system is an interior fitting module for modular distribution panels with NH00 disconnectors. Engineers often struggle with space efficiency and precise busbar alignment in compact enclosures. It carries CE conformity under EU declarations, RoHS compliant, and DIN EN 61439-2/3 certification, ensuring regulatory and safety compliance. Designed for reliable electrical protection and streamlined installation, it integrates with 108 DIN place units and supports up to 12 mountable devices. By using horizontal busbar alignment with a 100 mm center distance and a built-in depth of 225 mm, you gain faster assembly, easier service, and lower total installed cost. This position helps electrical teams meet ongoing compliance while delivering robust performance in power distribution applications.
Product Information
Extended Description

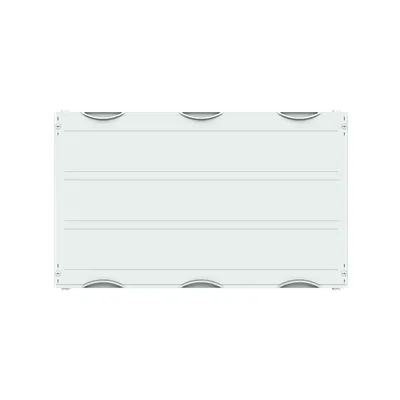

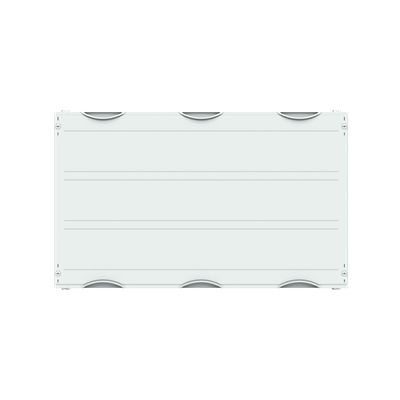

2CPX042118R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 100 mm NH00-disconnector, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 600 mm, unequipped for the installation of 12 NH-fuse disconnector NH00, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
12
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Rail system
DIN Place Units
108
Module Function
Busbar system 100 mm NH00-disconnector
Color
Light grey
Fuse Size
Other
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b178f49b-e7c1-435c-813e-dad4ccb01335 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
131 mm
Section Width
3
Product Net Weight
3.251 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.381 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module for the CombiLine busbar system with NH00-disconnector capability. Business impact: Delivers a modular, scalable foundation inside a 750 mm wide, 450 mm high, 131 mm deep enclosure, supporting 108 DIN place units and up to 12 mountable devices. Application: Perfect for 3-pole assemblies where space is at a premium and future expansion is planned. Paragraph break. Feature: Horizontal busbar alignment with 100 mm center distance and ZX520 busbar holders. Business impact: Improves alignment accuracy and reduces commissioning time by minimizing adjustments during panel assembly. Application: Ideal for efficient commissioning in control cabinets and distribution panels. Paragraph break. Feature: 850 A rated current and 3P operation. Business impact: Enables robust protection for high-demand loads while maintaining safe temperatures and long service life. Application: Suitable for motor starters, feeders, and low-voltage power distribution in manufacturing environments. Paragraph break. Feature: Durable enclosure with light grey RAL 7035 cover and 90-degree closure. Business impact: Provides environmental protection, simplifies maintenance, and ensures a clean, industry-grade appearance. Application: Used in factory floors, switchgear rooms, and machine enclosures. Paragraph break. Feature: Compliance and documentation package: DIN EN 61439-2/3, CE conformity, RoHS, REACH, CMRT, SCIP, mounting instructions MBD152/252/352. Business impact: Reduces compliance risk, streamlines purchasing, and accelerates audit readiness. Application: Essential for European facilities requiring formal conformity proofs. Paragraph break. Feature: Detailed dimensions and weight: Product width 750 mm, height 450 mm, depth 131 mm; built-in depth 225 mm; weight 3.251 kg. Business impact: Aids enclosure planning, spare parts budgeting, and shipping planning. Application: Facilitates precise fitting within modular systems and standard racks.
Get a Quick Quote for a ABB 2CPX042118R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042118R9999?
Enquire Now
FAQs
This interior fitting module is designed for the 100 mm NH00-disconnector busbar system within CombiLine panels. It supports 3P configurations, up to 12 mountable devices, and 108 DIN place units, with busbars installed separately. It uses a rail system mounting and WR frame for straightforward integration into existing panels.
Key specifications include a rated operational voltage of 400 V, a maximum operating voltage of 400 V, and a rated current of 850 A. The system is 3-pole, supports up to 12 devices, and accommodates up to 3 copper busbars with a 100 mm center distance. Built-in depth is 225 mm, with overall dimensions of 750 x 450 x 131 mm.
Ideal for modular distribution panels in industrial automation, machine cabinets, and switchgear rooms. It supports CombiLine panel configurations, enabling compact, scalable low-voltage power distribution with reliable busbar alignment and easy service access in high-demand environments.
The module complies with DIN EN 61439-2/3 standards and has CE conformity. It carries RoHS and REACH declarations, CMRT, SCIP registration, and provides mounting instructions MBD152/252/352, ensuring audit readiness and regulatory compliance across European facilities.
The 100 mm busbar center distance, ZX520 busbar holders, and horizontal alignment reduce commissioning time and rework. With 108 DIN places and 12 mountable devices, you gain scalable capacity, faster serviceability, and lower total installed cost, contributing to reduced downtime and improved maintenance efficiency.
