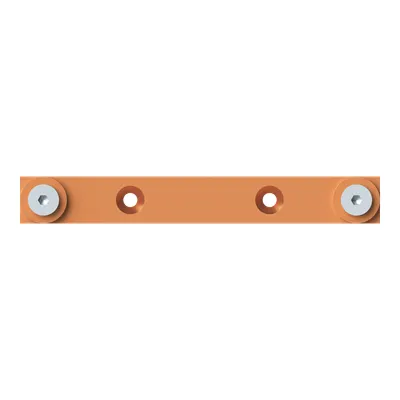

ABB 2CPX042119R9999 Busbar Connection Set - 630 A
Part Number: 2CPX042119R9999
Quick Summary
ABB 2CPX042119R9999 is a copper busbar connection set for CombiLine modular distribution panels, delivering reliable field-to-field connections up to 630 A. Engineers often face wiring complexity, heat buildup, and assembly delays in panel builds; this solution simplifies installation and reduces risk with a compact, purpose-built copper connection. It carries CE conformity, RoHS compliance, and DIN 43673-1 alignment, with REACH and WEEE considerations to support lifecycle stewardship. By integrating seamlessly with ABB’s CombiLine modules and adhering to ETIM/eClass classifications, it delivers predictable performance and simplifies procurement for modular distribution systems in industrial automation environments.
Product Information
Extended Description
2CPX042119R9999 ABB: Copper busbar connection set, CombiLine, Modular distribution panel not assembled, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Connection Type
Field / Field
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
230 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.897 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.933 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
Standards
DIN 43673-1
High-current, copper busbar construction: The 630 A rating ensures robust, low-impedance connections for demanding panel layouts, reducing thermal rise and improving overall efficiency in switchgear assemblies. Business impact: lower operating temperatures and improved reliability in critical distribution paths; Application: modular distribution panels in manufacturing automation lines. Compact dimensions (230 mm width, 30 mm height, 10 mm depth) and light 0.897 kg weight enable tight packing within narrow cabinet enclosures, speeding assembly and reducing cabinet footprint for higher line density. Flexibility with Field / Field connection and 1P configuration supports easy, scalable field wiring in ABB CombiLine systems, cutting commissioning times and minimizing errors during installation. Regulatory compliance package including RoHS, REACH declarations, CE conformance, and WEEE categorization reduces compliance risk and lifecycle costs, while DIN 43673-1, ETIM EC000713, and eClass 27400606 alignment streamlines supplier data and procurement workflows. Mounting guidance via MBD152/252/352 provides clear, repeatable installation steps, improving consistency across projects and field service. In practice, these features translate to faster project turnover, reduced spare part SKUs, and a lower total cost of ownership for modular power distribution installations.
Get a Quick Quote for a ABB 2CPX042119R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042119R9999?
Enquire Now
FAQs
The 2CPX042119R9999 is designed as a field-to-field copper busbar connection set for ABB CombiLine modular panels. It supports 1P configurations and aligns with ABB mounting guidelines (MBD152, MBD252, MBD352). Compatibility is reinforced by ETIM and eClass classifications, ensuring seamless procurement and integration within ABB ecosystems.
Key specs include a rated current of 630 A, single-pole (1P), and a field-to-field connection type. Dimensions are 230 mm width, 30 mm height, and 10 mm depth, with a net weight of approximately 0.897 kg. It is a copper busbar enclosure type designed for CombiLine panels.
Yes. It carries RoHS information and status per EU Directive 2011/65/EU with updates through 2019, REACH declarations, and WEEE categorization (Category 5). The EU Declaration of Conformity and CE labeling further confirm regulatory compliance for European markets.
Follow the Mounting Instructions MBD152, MBD252, and MBD352. Ensure correct field-to-field connections and proper torqueing where applicable. The product is designed for CombiLine modular panels and benefits from ABB’s mounting guidance to minimize assembly time and prevent misconnection.
The set offers reliable high-current connections with a compact footprint, reducing panel area and installation time. Regulatory compliance (RoHS, REACH, CE) lowers risk and lifecycle costs, while standardized data through ETIM/eClass facilitates faster sourcing and reduced procurement cycles in industrial automation projects.
