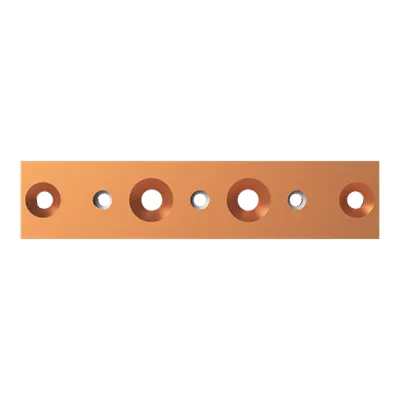

ABB 2CPX042124R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042124R9999
Quick Summary
ABB 2CPX042124R9999 copper busbar is a modular distribution solution for high-current panel applications in electrical distribution. Customers often struggle with misaligned busbar lengths, insufficient current capacity, and delays during panel assembly. It adheres to DIN 43673-1 standards with CE conformity and RoHS/REACH compliance, ensuring safe, reliable installations in demanding environments. Designed for panel builders using the CombiLine modular system, it accelerates assembly, reduces waste, and improves reliability in power feeds. The robust copper construction supports a rated current of 850 A in a compact 40 mm by 184 mm profile, helping you optimize space and minimize thermal losses. This combination delivers measurable lifecycle and cost-of-ownership benefits in automation projects.
Product Information
Extended Description
2CPX042124R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 184 mm, rated current maximum 850 A
Rated Current (In)
850 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
184 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.602 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.626 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: 850 A rated current with a 1P configuration supports high-load single-feed circuits in compact panel footprints. Business impact: This increases distribution density while minimizing parallel conductor complexity, which reduces installation time and potential hotspots. Application: Suitable for ABB CombiLine modular distribution panels where panel width is constrained to 184 mm and space for a single, robust busbar path is required.Feature: Copper busbar with Untreated surface. Business impact: Untreated copper offers excellent electrical conductivity with cost efficiency and flexibility for on-site finishing or coating decisions. Application: Ideal for panel assemblies in automation setups where finish customization is planned at the shop floor.Feature: Precise dimensions—184 mm width, 40 mm height, 10 mm depth; 1 section; net weight 0.602 kg. Business impact: Predictable fit in standard 184 mm wide panel enclosures, reducing rework and enabling repeatable assemblies across multiple frames. Application: Used in modular CombiLine builds to maintain consistent spacing and thermal performance.Feature: RoHS and REACH compliance; DIN 43673-1; CE. Business impact: Regulatory risk reduction and easier certification workflows for industrial projects. Application: Critical for machine builders and system integrators targeting compliant power distribution in factory automation.Feature: WEEE classification and packaging details; 1 piece per pack. Business impact: Simplified end-of-life planning and streamlined procurement for B2B panel manufacturing. Application: Supports standard inventory practices and orderly disposal in compliance programs.
Get a Quick Quote for a ABB 2CPX042124R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042124R9999?
Enquire Now
FAQs
Installation begins with verifying panel width is 184 mm and the 1P busbar footprint aligns with the designated slot. Use mounting instructions MBD152/252/352 for guidance, secure the busbar with compatible clamps, and ensure clean, dry surfaces prior to mounting. The 40 mm by 184 mm profile fits standard CombiLine layouts and supports CE and RoHS compliance during commissioning.
The busbar is rated for 850 A with a 1P configuration. It uses a copper busbar enclosure type and comes with an Untreated surface finish, offering high conductivity and straightforward field finishing if required.
Yes. With an 850 A rating and a compact 40x184x10 mm footprint, it supports dense power distribution in industrial automation panels, reducing the need for multiple parallel conductors and improving thermal performance in CombiLine modular systems.
It adheres to DIN 43673-1, carries a CE declaration of conformity, and complies with RoHS and REACH requirements. WEEE categorization is noted, and the product conforms to EU environmental and safety standards for industrial equipment.
The module’s compliant materials (RoHS/REACH, CE) reduce regulatory risk, while its precise dimensions and high current rating minimize rework and heat-related maintenance. Its integration with CombiLine modular systems accelerates upgrades, lowering total cost of ownership across the panel lifecycle.
