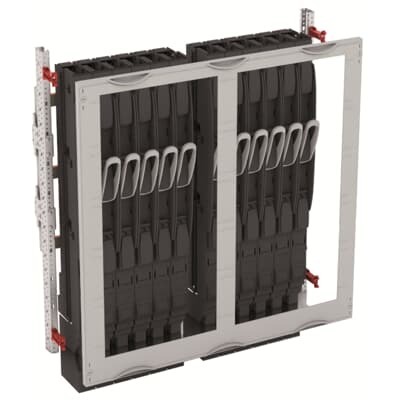

ABB 2CPX042245R9999 Busbar System - DIN EN 61439-3

Feature: 60 DIN Place Units and space for 4 NH00 fuse disconnector devices. Benefit: Maximizes device density in a 60U footprint, reducing cabinet width requirements and saving overall installation time. Application: Ideal for panel builders integrating multiple NH00 disconnectors in a compact 750 mm tall enclosure. Feature: 3P design with a maximum 850 A rating at 400 V. Benefit: Handles high-current distribution with robust fault tolerance, lowering the need for external busbar blocks. Application: Suitable for industrial control panels requiring reliable heavy-duty distribution. Feature: Busbar system 185 mm center distance with ZX522 busbar holders and room for up to 3 Cu busbars. Benefit: Flexible copper busbar configuration while maintaining precise alignment, improving thermal performance and ease of maintenance. Application: Used in CombiLine interior fittings for horizontally aligned busbars. Feature: Enclosure type Interior fitting module with WR mounting frame and rail system mounting. Benefit: Quick, compatible installation in standard cabinets, reducing commissioning time and risk of misalignment. Application: Fits common switchgear enclosures and modular subracks. Feature: Plastic cover, light grey finish, RoHS and REACH declarations, CE conformity, WEEE category 4. Benefit: Ensures regulatory compliance, safer disposal, and predictable lifecycle costs. Application: Suitable for regulated manufacturing environments and OEM panel builds. Feature: Built-in depth 350 mm and product net dimensions 250 mm W x 750 mm H x 192 mm D; weight ~13.868 kg. Benefit: Clear fit within cabinet depth constraints while providing sturdy, predictable handling during installation. Application: Works in cabinets with usable depth starting around 275 mm and standard 250 mm internal widths.
