ABB 2CPX042250R9999 NH-disconnector Interior Module EN61439
Part Number: 2CPX042250R9999
Quick Summary
ABB 2CPX042250R9999 NH-disconnector interior module is designed for busbar systems in cabinet-based protection schemes, delivering a compact and safe 3-pole arrangement for power distribution. Engineers often struggle with space constraints, difficult access to fuse switches, and costly panel expansions; this module helps streamline installation and maintenance while minimizing downtime. It aligns with DIN EN 61439-3 and CE compliance, with RoHS and REACH declarations ensuring regulatory alignment for European panel builders. With an 850 A rating and 400 V capability across 60 DIN spaces, it enables scalable capacity for growing automation lines while preserving predictable build times and ease of service.
Product Information
Extended Description

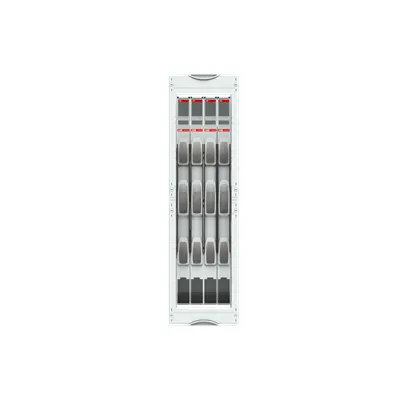

2CPX042250R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-disconnector, Grid unit 6 GU = 900 mm, panel width 1 = 250 mm, 60 Space units, , usuable width of 200 mm, equipped with 4 NH-fuse disconnector NH00, Equipment manufacturer: ABB, InLine II ZHBM + EFM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
4
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
4
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
2
Mounting Type
Rail system
Accessories Available
Yes
DIN Place Units
60
Module Function
Busbar system 185 mm NH-disconnector
Color
Light grey
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
900 mm
Product Net Depth / Length
159.5 mm
Section Width
1
Product Net Weight
14.475 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
15.054 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module supports 3P protection with 4 NH00 fuse disconnectors and horizontal busbar alignment. Business Impact: Enables compact, organized protection assemblies within standard cabinets, reducing footprint and wiring complexity. Application: Suitable for 185 mm NH-disconnector configurations in CombiLine busbar systems. Feature: 60 DIN place units and 250 mm width allow efficient space utilization in panel design. Business Impact: Improves planning accuracy and reduces oversized enclosures. Application: Ideal for medium-to-large switchgear with frequent reconfiguration. Feature: Rail mounting WR enclosure frame and 90-degree closure provide durable, tool-friendly installation. Business Impact: Speeds assembly, reduces contractor labor, and improves safety. Application: Common in factory automation panels and sub-distribution boards. Feature: Includes in-lineZN components such as ZX522 busbar holders and EFM integration. Business Impact: Simplifies wiring routing and elevates control panel reliability. Application: Preferred where modular busbar assemblies are required. Feature: RoHS and REACH declarations plus CE conformity. Business Impact: Streamlines regulatory approvals and reduces compliance risk. Application: Essential for European manufacturing environments and end-user auditing.
