ABB 2CPX042254R9999 Busbar System - DIN EN 61439-3
Part Number: 2CPX042254R9999
Quick Summary
ABB 2CPX042254R9999 Busbar System NH-disconnector provides compact power distribution inside industrial cabinets. In tight panels, space constraints and wiring complexity can slow installation and increase maintenance costs. This module carries CE conformity and DIN EN 61439-3 compliance, plus RoHS and REACH declarations, supporting regulatory alignment for global projects. Designed for a 3P NH1 busbar arrangement, rated up to 850 A, it helps panel builders scale installations and ensure consistent protection. Its interior fitting module design reduces wiring errors, simplifies maintenance, and supports modular expansion for evolving protection schemes. By aligning with ABB CombiLine standards, the solution accelerates panel builds, improves uptime, and lowers total cost of ownership.
Product Information
Extended Description

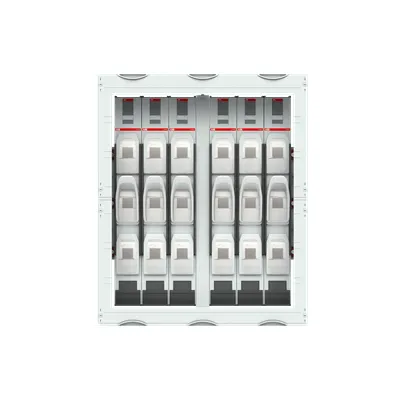

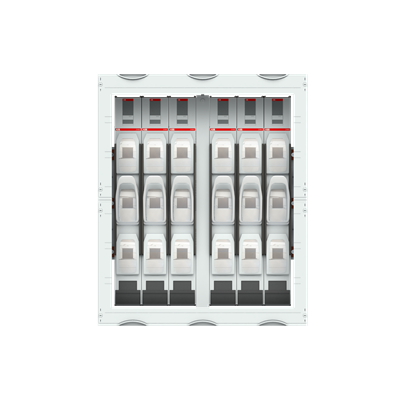

2CPX042254R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-disconnector, Grid unit 6 GU = 900 mm, panel width 3 = 750 mm, 180 Space units, , usuable width of 600 mm, equipped with 6 NH-fuse disconnector NH1, Equipment manufacturer: ABB, InLine II ZHBM + EFM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
8
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
6
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR
Device
NH1
Enclosure Type
Interior fitting module
Enclosure Type of Height
2
Mounting Type
Rail system
Accessories Available
Yes
DIN Place Units
180
Module Function
Busbar system 185 mm NH-disconnector
Color
Light grey
Fuse Size
NH1
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
750 mm
Product Net Height
900 mm
Product Net Depth / Length
159.5 mm
Section Width
3
Product Net Weight
33.41 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
34.746 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The interior fitting module is designed for a 3P NH1 busbar system with 185 mm spacing, maximizing cabinet real estate to 600 mm of usable width and 180 DIN place units. This enables faster wiring layouts and predictable space allocation for future accessories in 900x750x159.5 mm enclosures, ideal for panel builders delivering turnkey distributions. Feature → Business Impact → Application: Six mountable devices and eight NH1 fuse switch disconnectors deliver scalable protection without enclosure redesign, reducing change orders and commissioning time in manufacturing lines. Feature → Business Impact → Application: Rail mounting with WR frames and a 350 mm built‑in depth ensures stable alignment and straightforward retrofits in existing installations, lowering maintenance effort and downtime. Feature → Business Impact → Application: Light grey plastic covers, 90-degree closure, and horizontal busbar alignment improve visibility, safety, and serviceability during routine inspections and fault finding. Feature → Business Impact → Application: Compliance with RoHS, REACH, WEEE category 4 guidance, and CE declarations reduces regulatory risk for international projects while keeping procurement straightforward for OEMs.
Get a Quick Quote for a ABB 2CPX042254R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042254R9999?
Enquire Now
FAQs
This interior fitting module is designed for a 185 mm NH-disconnector busbar system with 3P configuration, supports up to 850 A, and fits WR rail mounting in 900 mm by 750 mm cabinets. It also accommodates 180 DIN place units and 6 mountable devices, enabling straightforward integration into ABB CombiLine setups.
Key specs include maximum 400 V operational voltage, 850 A rated current, 3 poles, 8 fuse switch disconnectors, 6 mountable devices, and a built-in depth of 350 mm. The enclosure supports horizontal busbar alignment with a center distance of 185 mm and is suitable for up to 3 copper busbars (busbars ordered separately).
Yes. It holds CE conformity and compliance with DIN EN 61439-3, RoHS and REACH declarations, and is categorized under WEEE 4. Large Equipment. These certifications ensure regulatory alignment, safety, and responsible materials management for global deployments.
The design reduces installation time through plug‑and‑play mounting on WR rails, minimizes wiring errors with clear busbar alignment, and ensures scalable protection with eight NH1 disconnectors. Its durable plastic enclosure and standardized dimensions support predictable maintenance cycles and lower long‑term costs in panel builds.
Ensure horizontal busbar alignment using ZX522 busbar holders and maintain the 185 mm center distance; plan for up to 3 Cu busbars ordered separately. Use the 180 DIN place units within the 600 mm usable width, and mount on the WR rail frame for stable operation compatible with CombiLine configurations.
