ABB 2CPX042262R9999 Busbar System - Interior Fitting Module, CE/DIN EN 61439-3
Part Number: 2CPX042262R9999
Quick Summary
ABB 2CPX042262R9999 Busbar System is an interior fitting module designed for modular distribution panels in 3-pole busbar installations. Engineers often grapple with space constraints, misalignment, and retrofit complexity when upgrading legacy cabinets. This solution carries CE conformity with DIN EN 61439-2/3, RoHS compliance, REACH declarations, and SCIP status, providing regulatory assurance across projects. By standardizing mounting, center distances, and device capacity, it delivers predictable, scalable layouts. The module supports a 185 mm busbar center distance, horizontal alignment, and up to eight mountable devices within a 500 mm wide, 900 mm high enclosure, translating into faster assembly and lower lifecycle costs for panel builders and system integrators.
Product Information
Extended Description

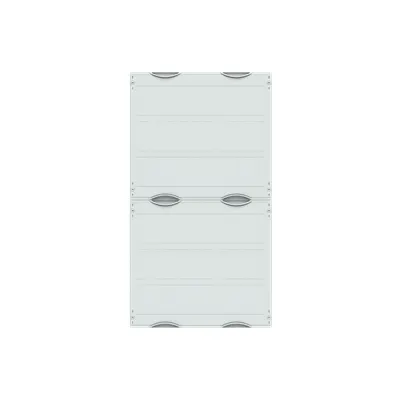

2CPX042262R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 185 mm NH-disconnector, Grid unit 6 GU = 900 mm, panel width 2 = 500 mm, 144 Space units, , usuable width of 400 mm, unequipped for the installation of 8 NH-fuse disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
0
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
8
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
NH1 till NH3
Enclosure Type
Interior fitting module
Enclosure Type of Height
2
Mounting Type
Rail system
Accessories Available
Yes
DIN Place Units
144
Module Function
Busbar system 185 mm NH-disconnector
Color
Light grey
Fuse Size
Other
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
7c6c5fae-28b2-4fa5-8021-54fe866dda8c Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
900 mm
Product Net Depth / Length
159.5 mm
Section Width
2
Product Net Weight
4.258 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.428 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction: MBD100/200/300 (E)
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module designed for the CombiLine busbar system, compatible with 185 mm NH-disconnector, and offering 144 DIN unit capacity. Business Impact: Enables compact, scalable cabinet architecture with standardized rails and busbar supports, reducing installation time and field rework. Application: Ideal for modular distribution panels in manufacturing and process plants where future expansion is anticipated. Feature: 3-pole configuration rated to 850 A at 400 V with a panel footprint of 500 mm by 900 mm and a built-in depth of 350 mm. Business Impact: Supports high-current distribution without external adaptors, improving reliability and thermal performance, which translates to lower downtime and maintenance costs. Application: Main distribution sections in industrial control cabinets. Feature: Rail mounting frame WR and compatibility with 6 GU grid unit (900 mm) with usable panel width of 400 mm and horizontal busbar alignment at 185 mm center distance. Business Impact: Standardized installation reduces bespoke fabrication, accelerates commissioning, and enhances interchangeability across sites. Application: New builds and upgrades in panel houses and switchgear rooms. Feature: Up to eight mountable devices and 144 DIN Places; enclosure is light grey (RAL 7035) with a 90-degree press-and-turn closure. Business Impact: Flexible expansion and straightforward access for maintenance, enabling faster upgrades and safer field servicing. Application: ITS, automation lines, and process instrumentation downstream of power distribution. Feature: Regulatory compliance and material transparency including RoHS, REACH, CE declarations, WEEE classification, and SCIP status. Business Impact: Reduces compliance risk and lifecycle costs, supporting procurement in regulated industries and public sector projects. Application: Sensitive environments where sustainability and traceability matter.
