ABB 2CPX042264R9999 Busbar NH-Disconnector - DIN EN 61439
Part Number: 2CPX042264R9999
Quick Summary
ABB 2CPX042264R9999 is a busbar NH-Disconnector interior module for 3-pole distribution panels. Engineers often contend with limited cabinet depth and misaligned busbar configurations that slow commissioning and raise risk. This solution carries DIN EN 61439-2/3 compliance, CE conformity, and RoHS/REACH declarations to ensure safe, regulatory-ready installations. By delivering 72 DIN places, space-efficient mounting, and modular expansion, it supports scalable, cost-controlled panel builds in automation and electrical protection applications. Designed for interior fitting within cabinet walls, it integrates with WR mounting frames and ZX522 busbar holders to optimize layout and accessibility in high-density switchgear.
Product Information
Extended Description

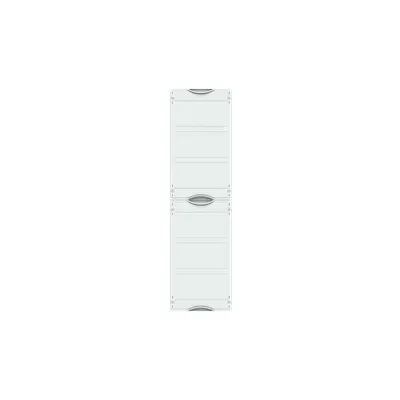

2CPX042264R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-disconnector, Grid unit 6 GU = 900 mm, panel width 1 = 250 mm, 72 Space units, , usuable width of 150 mm, unequipped for the installation of 4 NH-fuse disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Poles
3P
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
4
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
NH1 till NH3
Enclosure Type
Interior fitting module
Enclosure Type of Height
2
Mounting Type
Rail system
Accessories Available
Yes
DIN Place Units
72
Module Function
Busbar system 185 mm NH-disconnector
Color
Light grey
Fuse Size
Other
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
7c6c5fae-28b2-4fa5-8021-54fe866dda8c Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
900 mm
Product Net Depth / Length
159.5 mm
Section Width
1
Product Net Weight
2.758 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.868 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
