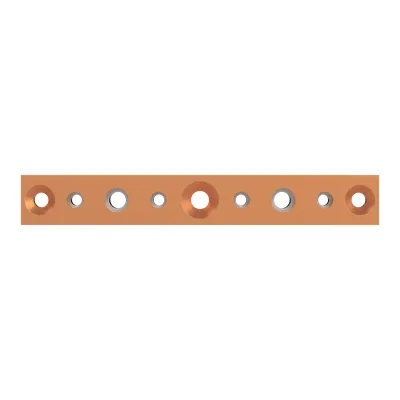

ABB 2CPX042267R9999 Copper Busbar - 630 A, RoHS
Part Number: 2CPX042267R9999
Quick Summary
ABB 2CPX042267R9999 copper busbar enables compact modular distribution for panel systems in industrial automation. Engineering teams often struggle with wiring density and thermal management in space-constrained switchgear. This busbar carries EU CE conformity, RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations to support regulatory procurement. For panel builders, the CombiLine copper busbar integrates seamlessly with modular panels, delivering reliable current paths and simplifying installation, while maintaining compliance and traceability across the supply chain. Its 630 A rated current and 215 mm section width support high-density layouts, enabling faster assembly, reducing field wiring errors, and improving uptime in critical manufacturing lines. Ideal for distribution panels configured on CombiLine systems.
Product Information
Extended Description
2CPX042267R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 215 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
215 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.532 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.553 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Copper busbar material and CombiLine modular design → Business Impact: High conductivity and modularity support compact, scalable panel layouts → Application: Distribution panels in industrial automation cabinets. Feature: 630 A rated current for single-pole configurations → Business Impact: Enables higher current capacity in a compact footprint, reducing the need for parallel paths → Application: Main feeder and distribution stages in process lines. Feature: Dimensions 215 mm width x 30 mm height x 10 mm depth with Section Width 1 → Business Impact: Optimized enclosure fit and predictable assembly tolerances → Application: Dense control panel layouts where space is constrained. Feature: Surface Finishing Untreated → Business Impact: Cost-effective base material ready for standard assembly and finishing processes → Application: Initial installation in factory settings and field builds. Feature: RoHS, REACH, and CE compliance with WEEE alignment → Business Impact: Regulatory assurance and simplified procurement with traceability → Application: Compliance-driven projects across manufacturing and packaging lines. Feature: Mounting guidance Mounting Instruction MBD152/252/352 → Business Impact: Faster onboarding and repeatable installation across panel builders → Application: Modular CombiLine installations in new or retrofit projects. Feature: ETIM, eClass, and DIN standards alignment → Business Impact: Seamless data integration for procurement catalogs and ERP → Application: Digital catalogs and BOM management for OEMs.
Get a Quick Quote for a ABB 2CPX042267R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042267R9999?
Enquire Now
FAQs
Follow the mounting instructions MBD152, MBD252, or MBD352 for modular CombiLine assemblies. The busbar is 215 mm wide, 30 mm tall, and 10 mm deep with a 1P configuration, designed for straightforward alignment and secure electrical contact within a compliant distribution panel.
The busbar is rated for 630 A operating current, configured as a 1P single-pole copper path, with a panel width of 215 mm and a surface finish described as untreated copper, suitable for standard assembly workflows in distribution panels.
Yes. The product carries EU RoHS compliance under Directive 2011/65/EU and Amendment 2015/863, a REACH declaration, and CE conformity, ensuring regulatory compliance for procurement and end-use in regulated markets.
The busbar aligns with DIN 43673-1, ETIM 8 EC001522 Busbar, ETIM 9 EC001522 Busbar, and eClass 27370303. It is categorized under WEEE and supports DIN, ETIM, and eClass-based data integration for catalogs and ERP systems.
It enables high-density, reliable current paths with a 630 A rating in compact panels, reduces wiring complexity, speeds assembly with clear mounting instructions, and ensures regulatory compliance—all contributing to lower installation costs and improved uptime in manufacturing and packaging lines.
