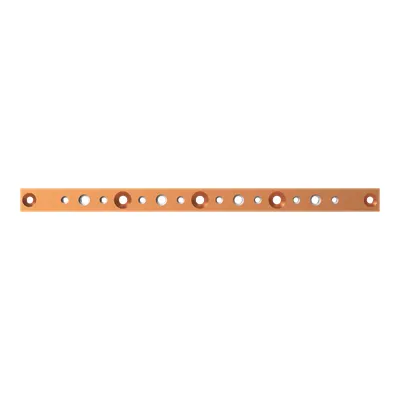

ABB 2CPX042268R9999 Busbar - DIN 43673-1 RoHS Compliant
Part Number: 2CPX042268R9999
Quick Summary
Busbar systems from ABB 2CPX042268R9999 deliver compact copper distribution for modular distribution panels in industrial electrical rooms. Engineers often wrestle with space constraints, heat management, and complex integration when expanding control gear. This ABB CombiLine busbar family is CE marked, RoHS compliant, and aligned to DIN 43673-1 for reliable compliance. Together with easy mounting instructions and a 465 mm wide profile, it supports faster panel builds and predictable service life. This translates to lower installation risk, reduced wiring errors, and a lower total cost of ownership over the asset lifecycle. Compatible with standard mounting kits and its documented mounting instructions MBD152/252/352, it fits within typical CombiLine panel widths.
Product Information
Extended Description
2CPX042268R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 2 = 465 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
465 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
2
Product Net Weight
1.17 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.217 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature → Business Impact → Application: 630 A rated current copper busbar provides high-load capability with low resistance, reducing voltage drop and heat generation in the distribution path. Business impact: improves energy efficiency and extends component life under peak demand. Application: ideal for 1P configurations in ABB CombiLine modular panels where a single copper path must carry the full load. Feature → Business Impact → Application: Compact 465 mm width, 30 mm height, and 10 mm depth optimize panel real estate while keeping guidance clear for installers. Impact: enables denser layouts, faster retrofits, and simpler wiring schemes. Application: suitable for new builds and panel uprates in manufacturing cells where space is critical. Feature → Business Impact → Application: Copper busbar with untinted finish and RoHS/REACH conformity reduces compliance risk and simplifies audits. Impact: supports safer, regulated environments; lowers risk of non-compliance penalties. Application: appropriate for regulated industries including food & beverage, pharma, and automation. Feature → Business Impact → Application: Documented mounting instructions MBD152/252/352 and integration with standard panel widths streamline installation. Impact: reduces on-site time, minimizes misalignment, and lowers training needs. Application: recommended for panel builders assembling CombiLine systems. Feature → Business Impact → Application: ETIM, eClass, and DIN 43673-1 alignment ensures interoperability with procurement and cataloging systems. Impact: speeds sourcing and BOM creation; improves data quality. Application: suitable for industrial automation procurement and cataloging workflows. Feature → Business Impact → Application: WEEE category 5 classification and packaging details support responsible disposal and recycling. Impact: simplifies compliance reporting and end-of-life planning. Application: ideal for project handovers in global deployments.
Get a Quick Quote for a ABB 2CPX042268R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042268R9999?
Enquire Now
FAQs
To install the ABB 2CPX042268R9999 busbar in a CombiLine modular panel, confirm compatibility with your panel width of 465 mm and 1P configuration. Use the mounting instructions MBD152/252/352, align the copper path precisely, and secure with appropriate fasteners. The 465 x 30 x 10 mm profile fits standard cutouts, and the 1.17 kg weight keeps handling manageable during assembly.
The busbar is a copper path rated for 630 A, designed for high-load distribution. It features an untreated copper surface suitable for controlled environments and is compatible with RoHS and REACH requirements, providing reliable electrical performance in industrial panels.
Yes. The product is specified as 1P (one-pole) copper busbar with a panel profile that fits 465 mm wide CombiLine modular distribution panels. Its compact dimensions and documented mounting instructions make it well-suited for single-path configurations in automation cabinets where space is constrained.
The busbar carries CE Declaration of Conformity, RoHS compliance per EU directives, and DIN 43673-1 alignment. It also references REACH declarations and other standard classifications (ETIM, eClass) to support regulatory compliance and procurement workflows.
Benefits include faster panel builds due to documented mounting instructions (MBD152/252/352), reduced wiring complexity, and a compact, high-current path that minimizes material usage. Compliance with RoHS and DIN standards reduces risk during audits, while the 1P configuration simplifies BOMs and procurement, contributing to lower total cost of ownership over the asset lifecycle.
