ABB 2CPX042269R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042269R9999
Quick Summary
ABB 2CPX042269R9999 Copper Busbar is a modular distribution busbar designed for CombiLine panel systems in industrial power distribution. It helps engineers address space constraints and complex wiring by providing a compact, high-current path within modular panels. Key certifications underpinning regulatory compliance include CE conformity, RoHS compliance, and REACH declarations, with alignment to DIN 43673-1. This combination supports faster panel assembly, reduces wiring complexity, and enhances lifecycle reliability. By integrating this busbar, buyers gain predictable current performance and scalable integration with ABB’s CombiLine ecosystem, improving installation efficiency and total cost of ownership in control cabinets and switchgear assemblies.
Product Information
Extended Description

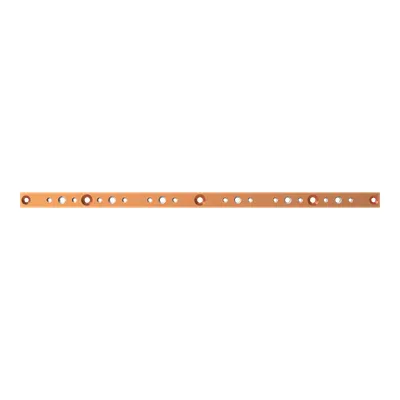

2CPX042269R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 715 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
715 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
3
Product Net Weight
1.819 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.892 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature → Business Impact → Application: Rated current of 630 A enables reliable, high-capacity power routing in compact spaces, reducing the need for oversized conductors and enabling smaller panel footprints in critical control applications. This translates to cost savings on copper and a lower thermal rise under peak loads, especially in 1P distribution scenarios where space is at a premium in automated lines. Application: CombiLine modular panels with tight layouts in manufacturing cells. Feature → Business Impact → Application: 715 mm panel width with a 30 mm height and 10 mm depth creates a slim profile that preserves enclosure real estate while maintaining robust current capability. This supports easy retrofits and future expansions in existing cabinets. Feature → Business Impact → Application: Untreated copper finish provides excellent conductivity with straightforward machining and termination, while maintaining compatibility with standard ABB mounting accessories. Application: Factory floor automation panels requiring fast assembly and dependable electrical performance. Feature → Business Impact → Application: RoHS and REACH declarations plus DIN 43673-1 compliance reduce regulatory risk and simplify supplier qualification during panel builds. Application: Projects with strict environmental and safety standards. Feature → Business Impact → Application: Mounting instructions MBD152 / 252 / 352 streamline installation, reducing misalignment and rework. Application: Panel builders upgrading to CombiLine systems. Feature → Business Impact → Application: WEEE category compliance and 4. Large Equipment designation inform end-of-life planning and recycling; B2C/B2B compatibility supports both OEM integrations and aftermarket service scenarios. Application: Global rollouts with varied disposal requirements. The result is a robust, standards-aligned busbar that minimizes wiring length, improves traceability, and supports scalable, compliant power distribution in modern industrial cabinets.
Get a Quick Quote for a ABB 2CPX042269R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042269R9999?
Enquire Now
FAQs
The 2CPX042269R9999 copper busbar is designed for ABB CombiLine modular distribution panels and is sized for a 715 mm panel width with a compact 30 mm height and 10 mm depth. It supports 1P configurations and includes mounting guidance (MBD152 / 252 / 352) to ensure straightforward integration into existing panel builds.
This busbar is rated for up to 630 A, enabling high-current distribution in compact 1P configurations. The 630 A rating supports robust load handling in modular panels while helping to minimize conductor count and heat buildup in space-constrained switchgear and control cabinets.
Yes. The product carries RoHS compliance under EU Directive 2011/65/EU and its amendments, with a RoHS date of 2024-09-03, plus a REACH declaration indicating no substances above 0.1 mass percent. These declarations simplify regulatory qualification for European projects and global deployments.
Mounting instructions MBD152, MBD252, and MBD352 apply for this busbar. When integrating into a CombiLine modular panel, ensure correct orientation and alignment within the 715 mm width, and follow the factory mounting guidelines to minimize install time and ensure reliable electrical contact and mechanical stability.
Benefits include high current capacity within a slim profile, which preserves enclosure space; adherence to CE, RoHS, and REACH standards for regulatory compliance; straightforward installation with ABB mounting instructions; and compatibility with CombiLine components, reducing wiring complexity and total lifecycle costs in industrial automation environments.
