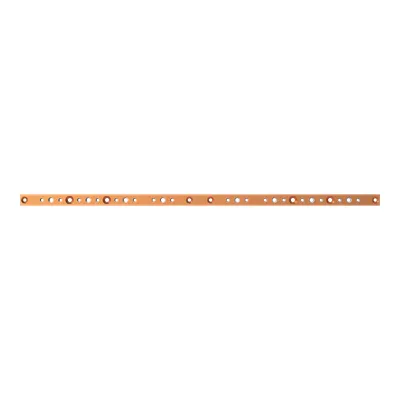

ABB 2CPX042270R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042270R9999
Quick Summary
Copper busbar is a robust solution for modular power distribution in ABB CombiLine panels. It enables clean, low-resistance current paths in compact, space-constrained cabinets. Engineers often grapple with limited mounting space, misalignment, and balancing currents across busbar links during panel assembly. This ABB component provides CE conformity with RoHS and REACH declarations and a clear WEEE category, supporting EU compliance and sustainable design. The 965 mm wide, 30 mm high, 10 mm deep profile fits standard panel widths while delivering a 630 A rating in a 1P configuration, reducing the number of parallel runs. For increasing efficiency and reliability, it pairs with mounting instructions MBD152/252/352 and is ideal for professional panel builders.
Product Information
Extended Description
2CPX042270R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 4 = 965 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
965 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
4
Product Net Weight
2.433 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.53 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
630 A rated current delivers higher load capacity in a single-pole copper busbar, reducing the need for parallel conductors and lowering copper loss. This translates to improved efficiency and cost savings in large distribution cabinets, particularly in CombiLine modular panels used by panel builders in industrial facilities. The 965 mm width and 30x10 mm dimensions provide precise fit within standard panel frames, enabling faster layout planning, consistent alignment across sections, and reduced field modification. The Untreated surface finishing allows on-site customization or coating to match installation requirements, while keeping handling simple for skilled technicians. RoHS and REACH compliance, plus a clear WEEE categorization, minimize regulatory risk and simplify EU market entry. DIN 43673-1 and CE declarations ensure compatibility with common industry specifications, helping procurement teams standardize specs. Mounting instructions MBD152/252/352 streamline installation, reducing on-site time and training needs, while the 2.433 kg net weight supports predictable logistics. Overall, this busbar supports reliable, scalable distribution in compact cabinets with predictable lifecycle costs.
Get a Quick Quote for a ABB 2CPX042270R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042270R9999?
Enquire Now
FAQs
Yes. This copper busbar is designed for ABB CombiLine modular distribution panels and fits standard panel widths with a 965 mm net width, 30 mm height, and 10 mm depth. It supports a 1P configuration and aligns with mounting instructions MBD152, MBD252, and MBD352 for straightforward integration.
The part carries CE conformity, RoHS information and status, and REACH declarations, along with WEEE categorization. It adheres to EU regulatory frameworks and DIN 43673-1 standards, helping you meet specification requirements and reduce compliance risk in European markets.
Net weight is 2.433 kg with a pack weight of 2.53 kg. Dimensions are 965 mm width, 30 mm height, and 10 mm depth. Use mounting instructions MBD152/252/352 for proper alignment. Ensure handling precautions for untreated copper and verify panel frame compatibility before integration.
A 630 A rating enables higher current capability in a single-pole busbar, reducing the need for parallel conductors and lowering copper losses. This improves overall efficiency, simplifies wiring layouts within compact CombiLine panels, and can reduce material and labor costs during panel assembly.
The copper busbar supports long service life with reliable electrical performance and minimizes risk through EU-compliant RoHS/REACH and WEEE. A streamlined installation and standard dimensions aid faster deployment, reducing commissioning time and on-site labor costs, contributing to a favorable total cost of ownership in modular distribution applications.
