ABB 2CPX042271R9999 Copper Busbar - 630 A DIN 43673-1
Part Number: 2CPX042271R9999
Quick Summary
ABB 2CPX042271R9999 copper busbar enables compact, reliable power distribution in modular panels for industrial automation environments. Engineers often struggle with limited space and heat management when expanding switchgear, risking downtime and higher maintenance costs. This part carries CE conformity, RoHS compliance, and DIN 43673-1 busbar standards, aligning with regulatory and safety requirements. With CombiLine compatibility and a 630 A rating, it supports scalable, cost-efficient distribution in growing facilities, while delivering robust current handling and long-term reliability.
Product Information
Extended Description

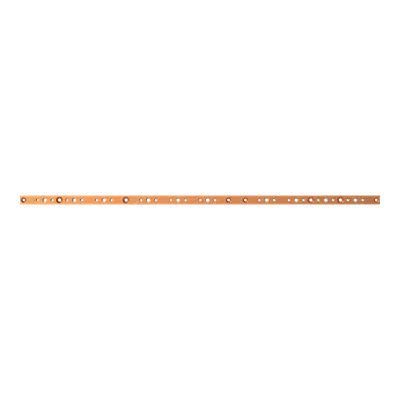

2CPX042271R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 5 = 1215 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1215 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
5
Product Net Weight
3.082 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.205 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature 1: Rated Current of 630 A ensures high-load capability for heavy automation loads. Business Impact: Enables fewer parallel runs and reduces cabinet density, cutting footprint and cabling complexity. Application: Suitable for single-pole modular distribution in CombiLine panels in factory automation. Feature 2: Panel width 1215 mm and product dimensions align to standard modular deployments. Business Impact: Improves layout predictability and simplifies panel design and installation. Application: Ideal for new builds and retrofits in mid-size power distribution enclosures. Feature 3: Copper busbar enclosure with Untreated surface delivers low resistance and ease of fabrication. Business Impact: Improves electrical performance and lowers maintenance costs due to material stability. Application: Suitable for RoHS-compliant electrical assemblies. Feature 4: Compliance and declarations including CE, RoHS, and REACH ensure regulatory readiness. Business Impact: Reduces compliance risk and accelerates time-to-operate. Application: Essential for regulated environments and multinational projects. Feature 5: WEEE and ETIM classifications support accurate cataloging and waste management. Business Impact: Enhances sustainability reporting and procurement accuracy. Application: Useful for asset tracking and lifecycle management in industrial plants.
Get a Quick Quote for a ABB 2CPX042271R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042271R9999?
Enquire Now
FAQs
Follow the mounting instructions MBD152, MBD252, or MBD352 provided with the product. Ensure correct alignment with panel rails, secure mounting fasteners, and verify electrical clearance. The 30x1215x10 mm busbar is designed for 1215 mm panel width and single-pole configurations, enabling straightforward integration into existing CombiLine enclosures.
The busbar is rated for 630 A. Its dimensions are 30 mm (height) x 1215 mm (width) x 10 mm (depth). It is designed for a 1215 mm wide modular panel and a 1P configuration, with copper enclosure suitable for untapped surface finishing.
Yes. It complies with RoHS as per EU Directive 2011/65/EU and Amendment 2015/863, with RoHS date 20240903. REACH declarations are provided, indicating no substances above 0.1 mass percentage, supporting regulatory compliance in diverse markets.
Key standards include DIN 43673-1 for busbars, CE conformity, and ETIM classifications EC001522 (for Busbar) in ETIM 8 and ETIM 9. WEEE category 4 (Large Equipment) and B2C/B2B consumer classification are noted, aiding compliance, cataloging, and lifecycle management.
The 630 A rating supports higher load with a compact footprint, reducing cabinet size and cabling. CombiLine compatibility enables modular expansion, lowering replacement and retrofit costs. RoHS/REACH compliance reduces regulatory risk, and straightforward installation shortens lead times, delivering measurable efficiency and uptime improvements in industrial power distribution projects.
