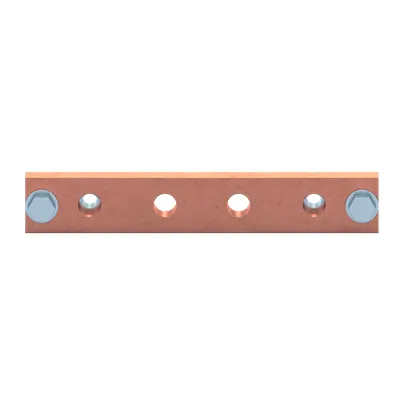

ABB 2CPX042333R9999 CombiLine Busbar - DIN 43673-1
Part Number: 2CPX042333R9999
Quick Summary
ABB 2CPX042333R9999 is a copper busbar module for modular distribution panels used in power management and distribution. Engineers often face tight spaces, bulky assemblies, and the need for reliable current handling; this compact busbar solution addresses those challenges with precise dimensions and robust construction. It carries the CE declaration of conformity, RoHS compliance under EU Directive 2011/65/EU and its amendment, and a DIN 43673-1 standard reference for busbar systems, ensuring regulatory alignment. In addition to meeting essential safety requirements, the design supports quick installation and traceability within ABB CombiLine systems, delivering value through improved install efficiency and predictable performance in high-current applications. For projects emphasizing reliability, compliance, and site safety, this busbar supports scalable configurations and consistent quality across the distribution panel.
Product Information
Extended Description
2CPX042333R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 192 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
192 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.616 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.641 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current supports up to 630 A. Business impact: Enables high-current distribution within compact modular panels, reducing the number of parallel components and saving space in the control cabinet. Application: Suitable for single-pole modular distribution layouts in ABB CombiLine systems where peak load is near the 630 A rating. Feature: Copper busbar with Untreated surface. Business impact: Delivers excellent conductivity and cost efficiency while permitting in-field finishing or protection as needed. Application: Indoor electrical assemblies in industrial plants where surface treatments may be added during installation. Feature: Compact dimensions 192 mm x 30 mm x 10 mm. Business impact: Enables tighter panel packing and easier routing of conductors, lowering enclosure size and labor. Application: Narrow-form distribution panels requiring precise section width and depth. Feature: Compliance and declarations RoHS REACH WEEE DIN 43673-1. Business impact: Simplifies regulatory compliance, reducing risk during audits and shortening time-to-commission. Application: Projects with strict environmental and safety standards across European facilities. Feature: Mounting compatibility with ZX mounting instructions. Business impact: Streamlines installation and reduces commissioning time with clear mounting guidance. Application: Field installations on CombiLine modular panels, supporting consistent assembly across multiple sites.
Get a Quick Quote for a ABB 2CPX042333R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042333R9999?
Enquire Now
FAQs
Mounting follows ABB ZX series instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N, ensuring consistent alignment and secure termination within CombiLine modular distribution panels. This minimizes installation time and reduces the risk of improper contact.
The busbar is rated for 630 A, 1P, with a copper enclosure and Untreated surface finish. Its dimensions are 192 mm wide, 30 mm high, and 10 mm deep, with a net weight of 0.616 kg. It is designed for indoor use within modular distribution panels.
Yes. RoHS information references the EU Declaration of Conformity for the Distribution Panel System CombiLine N, RoHS status follows EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations are provided, indicating no substances over 0.1 mass percentage. A 2024-09-02 REACH date is recorded.
The product is covered by CE declaration of conformity and DIN 43673-1 standards, along with ETIM and eClass classifications. These certifications validate safety, interoperability with panel systems, and compatibility with industrial procurement catalogs, reducing audit risk and alignment with supplier requirements.
Copper busbars offer low electrical resistance, high current-carrying capacity, and reliable performance in dense panel layouts. When combined with a 630 A rating and compact form factor, you gain improved efficiency, easier maintenance, and scalable configurations for growing distribution needs in power management installations.
