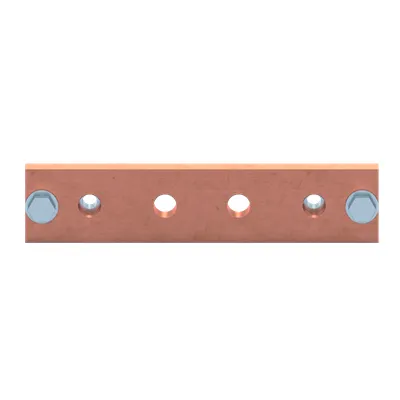

ABB 2CPX042334R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042334R9999
Quick Summary
Copper busbar systems enable high-current modular distribution for ABB CombiLine panels, delivering reliable power paths in switchgear assemblies. Sizing and mounting these conductors can be challenging, often leading to inefficient layouts and longer installation times. This solution adheres to CE and RoHS requirements while referencing DIN 43673-1 for busbar classification, ensuring compliance across European projects. Built for an 800 A rated current in a 1P configuration, it supports scalable power distribution without sacrificing space. With an untreated copper surface and proven compatibility with CombiLine components, it reduces wiring complexity, minimizes contact resistance, and lowers total cost of ownership over the lifecycle of industrial installations.
Product Information
Extended Description
2CPX042334R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 192 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
192 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.804 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.836 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current up to 800 A in a 1P configuration → Business Impact: Enables reliable main-side connections for high-load panels, reducing the risk of overheating and downtime → Application: Suitable for ABB CombiLine modular distribution systems in industrial switchgear. Feature: Compact footprint with 192 mm width and 40 mm height, 10 mm depth → Business Impact: Conserves panel space and simplifies cabinet routing, allowing easier retrofits and future scalability → Application: Ideal for space-constrained distribution panels. Feature: Copper busbar with Untreated surface finishing → Business Impact: Lower material cost while offering excellent conductivity and mating performance when paired with compatible lugs and housings → Application: Direct integration into copper busbar assemblies within ABB systems. Feature: Strong compliance profile (CE, RoHS, REACH, DIN 43673-1) → Business Impact: Simplifies regulatory approvals and supplier audits, reducing project risk → Application: Europe-wide deployments and regulated environments. Feature: Comprehensive compatibility data (ZX mounting instructions, CombiLine N) → Business Impact: Streamlined installation workflow and fewer field modifications → Application: Fast-track commissioning in modular distribution panels. Feature: WEEE and CMRT alignment (WEEE category 5; CMRT) → Business Impact: Facilitates end-of-life planning and responsible sourcing reporting → Application: Corporate sustainability programs and supplier compliance.
Get a Quick Quote for a ABB 2CPX042334R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042334R9999?
Enquire Now
FAQs
The 2CPX042334R9999 is designed for ABB CombiLine modular distribution panels and follows the ZX mounting instructions ( ZX2720-..25 ZX2740-..45 ZX2760-..61 MBX..N ), enabling straightforward integration into existing CombiLine frames and compatible lugs. Its 192x40x10 mm footprint suits compact panel widths while preserving clearance for connectors and busbar sleeves.
Key specs include a rated current of 800 A, 1P configuration, copper busbar enclosure, and an untreated surface finish. Dimensions are 192 mm width, 40 mm height, and 10 mm depth, with a net weight of 0.804 kg. Compliance covers RoHS, REACH, CE, and DIN 43673-1 classifications.
Yes. It is specifically rated for 800 A in a single-pole setup and is designed for modular CombiLine distribution panels used in industrial settings. The copper construction ensures low contact resistance, while RoHS/REACH compliance minimizes regulatory risk in harsh environments.
The product complies with CE, RoHS, REACH, DIN 43673-1, and WEEE guidelines, plus CMRT for responsible sourcing. These certifications streamline regulatory approvals, enable safer procurement, and support end-of-life planning, which is critical for European manufacturing and sustainability reporting.
The 800 A rated busbar reduces wiring complexity and contact resistance, shortening assembly time and minimizing heat-related losses. Its compact footprint improves panel density, lowers component counts, and supports easier future upgrades, delivering a faster return on investment and lower total cost of ownership over the system lifecycle.
