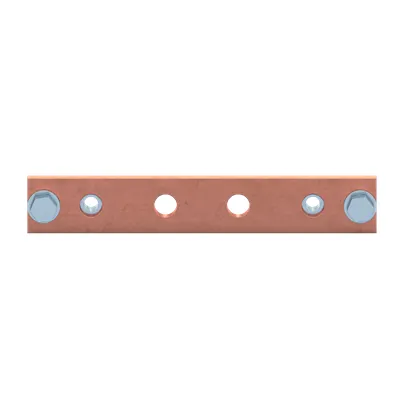

ABB 2CPX042336R9999 Busbar Module - DIN 43673-1
Part Number: 2CPX042336R9999
Quick Summary
ABB 2CPX042336R9999 busbar module provides compact copper distribution for modular power panels. Engineers often face complex wiring and inconsistent current paths when building scalable power distributions, leading to longer install times and higher risk of faults. This solution carries CE conformity, RoHS compliance, and WEEE declarations, supported by DIN 43673-1 references, ensuring regulatory peace of mind and safer operation. In addition, the copper busbar construction and 1P configuration align with combiLine modular distribution systems, enabling quick assembly and reliable single-pole performance. By leveraging this solution, engineering teams achieve faster commissioning, reduced maintenance burden, and improved overall electrical reliability across power management and distribution applications.
Product Information
Extended Description
2CPX042336R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 192 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
192 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
1
Product Net Weight
0.334 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.347 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
High current capacity: The unit delivers 630 A through a single 1P copper busbar, enabling consolidation of feeders and reducing routing complexity. This translates to lower wiring effort, improved thermal management, and more predictable panel performance in automotive, manufacturing, and industrial automation environments. In practice, engineers see faster panel brings and fewer fault paths in high-load applications. Compact form factor supports space-constrained installations without compromising current capability, especially valuable in data centers and robotic assembly lines where footprint matters. The 192 mm width, 30 mm height, and 5 mm depth facilitate easy integration into standard CombiLine panels while maintaining robust conductivity and reliable connections.
Get a Quick Quote for a ABB 2CPX042336R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042336R9999?
Enquire Now
FAQs
Yes. The 2CPX042336R9999 is designed for ABB CombLine modular distribution systems and supports single-pole copper busbar configurations. It ships as a non-assembled panel component with mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N, facilitating on-site fitting into standard CombLine layouts. Typical installations require attention to the 1P configuration and DIN 43673-1 basics, with secure connection to adjacent sections for a reliable, scalable power path.
The module is rated for 630 A, using a copper busbar as the conductor. This configuration supports high-current distribution with excellent conductivity, reducing resistance losses and enabling a robust single-pole path within modular distribution panels.
Industries including automation, manufacturing, data centers, and energy management benefit from its combination of high current capacity, compact form, and modular compatibility. The 1P copper busbar design integrates well with CombiLine systems in space-constrained switchgear, enabling scalable power distribution with reliable performance under peak loads.
The busbar module includes CE Declaration of Conformity, RoHS compliance (EU Directive 2011/65/EU with Amendment 2015/863), REACH information, and WEEE categorization (Category 5). It also references DIN 43673-1 for busbar classification and ETIM/eClass mappings, supporting regulatory alignment across EU and global markets.
The 2CPX042336R9999 reduces maintenance and upgrade costs by delivering a robust, high-current path in a compact footprint, lowering wiring complexity and fault potential. With mounting instructions and modular compatibility, commissioning is faster, which translates to shorter downtime and a quicker return on investment in automation and power distribution projects.
