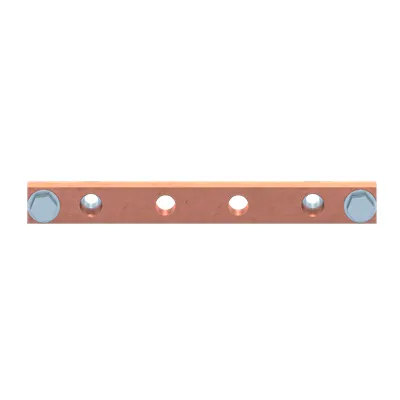

ABB 2CPX042337R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042337R9999
Quick Summary
ABB 2CPX042337R9999 Copper Busbar enables compact, modular power distribution in ABB CombiLine panels. Designers frequently contend with space constraints, heat buildup, and complex wiring when assembling modular distribution panels. The part carries CE conformity, RoHS compliance, and REACH declarations to support regulatory, environmental, and safety requirements. Its copper construction and exact dimensions ensure reliable current paths, while the 192 mm width and 10 mm depth fit standard enclosures without compromising performance. Using this busbar can reduce assembly time and maintenance costs, improving uptime in critical automation applications and enabling scalable expansion.
Product Information
Extended Description
2CPX042337R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 192 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
192 mm
Product Net Height
20 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.428 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.445 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Copper busbar with 192 mm width and 20 mm height designed for a 1P, 800 A rating. Business Impact: Delivers a low-resistance, high-current path that minimizes voltage drop and thermal stress, enhancing reliability and efficiency. Application: Suits CombiLine modular distribution panels in industrial environments where space is tight and performance must be predictable. Feature: Untreated surface finishing on copper. Business Impact: Reduces coating-related manufacturing steps and enables direct mounting in controlled environments, lowering installation time. Application: Helpful in panel fabrication lines prioritizing speed-to-install without compromising conductivity. Feature: Dimensions aligned to standard panel envelopes (192 mm width, 10 mm depth). Business Impact: Simplifies enclosure selection and reduces space planning risk, enabling faster design cycles. Application: Ideal for modular distribution layouts where footprint is a critical constraint. Feature: Compliance footprint including CE, RoHS, and REACH declarations. Business Impact: Supports regulatory clearance and sustainability commitments, reducing risk during audits and supplier qualification. Application: Critical for panels in industries with strict compliance requirements, such as automotive and process automation. Feature: 1P configuration with robust current path. Business Impact: Ensures reliable single-pole distribution for synchronous loads, improving fault tolerance and maintenance predictability. Application: Appropriate for feeder lines in compact control cabinets and low-profile power distribution setups.
Get a Quick Quote for a ABB 2CPX042337R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042337R9999?
Enquire Now
FAQs
Refer to mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N included with the product. Ensure correct alignment with the panel’s busbar slots, tighten fasteners to spec, and verify until torque requirements are met to prevent overheating and ensure reliable current paths.
It is a 1P copper busbar rated for up to 800 A with dimensions of 192 mm width, 20 mm height, and 10 mm depth. The surface is untreated, providing a direct copper path for high-current distribution within modular panels.
Yes. RoHS information indicates compliance with EU Directive 2011/65/EU and amendment 2015/863, with a RoHS date of 2024-09-03. REACH declaration confirms no substances above regulatory thresholds, with a REACH date of 2024-09-02. This supports regulatory clearance and sustainability goals.
The product aligns with DIN 43673-1 for busbars and is designed for modular distribution within CombiLine systems. It is ideal for compact control panels requiring reliable 800 A single-pole distribution and a space-efficient footprint.
The robust copper path and precise dimensions reduce heat-related losses and voltage drop, improving uptime. Quick mounting and compatibility with standard CombiLine panels lower installation labor, while regulatory compliance minimizes risk during audits, delivering a favorable total cost of ownership over the panel’s lifecycle.
