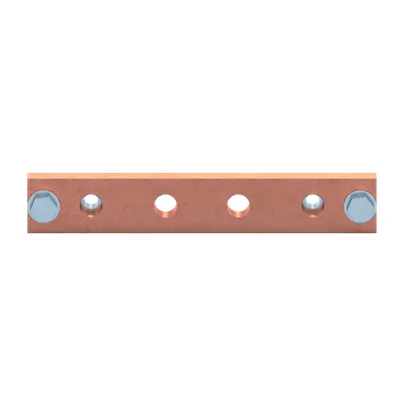

ABB 2CPX042338R9999 Busbar - DIN 43673-1
Part Number: 2CPX042338R9999
Quick Summary
ABB 2CPX042338R9999 is a copper busbar for modular distribution panels used in high-current industrial power cabinets up to 1000 A. Engineers often struggle with space constraints and unreliable current paths, making installation slow and error-prone. This product's 1000 A rating, single-pole copper design, and DIN 43673-1 compatibility support robust, scalable power distribution. Key certifications such as EU RoHS compliance, REACH declarations, and CE conformity provide regulatory clarity for European deployments. In practice, this translates to faster procurement, reduced installation steps, and predictable heat management in demanding control rooms. The product's compact 30 x 192 x 10 mm footprint and 0.616 kg weight support easy on-site handling. Overall, ABB 2CPX042338R9999 enables reliable, compliant power distribution for modular systems with reduced total cost of ownership.
Product Information
Extended Description
2CPX042338R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 192 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
192 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.616 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.641 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature high current carrying capacity: 1000 A rating on a single 1P copper busbar enables direct power feeds to distribution panels without excessive busducting in harsh industrial environments. Business impact: Simplifies topologies, reduces connectors, and minimizes voltage drop along main feeds, delivering measurable efficiency gains. Application: Best suited for CombiLine modular distribution panels in industrial automation cabinets.Feature compact geometry: 30 mm by 192 mm by 10 mm footprint with a 192 mm section width. Business impact: supports higher panel density and reduces the overall enclosure footprint without sacrificing current capacity and thermal stability. Application: ideal for scalable CombiLine installations where space is at a premium.Feature material and finish: copper busbar with Untreated surface configured for 1P applications. Business impact: robust current paths with minimal maintenance, enhanced by standardization through DIN 43673-1 and ETIM/eClass classifications. Application: suitable for OEMs and panel integrators seeking consistent data for procurement and maintenance records.Feature regulatory compliance: RoHS status, REACH declarations, and WEEE categorization for European product stewardship. Business impact: reduces regulatory risk in supply chains and speeds time-to-market for European projects. Application: aligns with European directives, enabling seamless integration with CE-certified combi panels.Feature installation guidance and compatibility: mounting instructions ZX2720-25, ZX2740-45, ZX2760-61, and MBX..N series. Business impact: reduces commissioning time and minimizes field-rework by providing consistent mounting and wiring references. Application: ideal for field integrations where standardized documentation accelerates project timelines across diverse project sites.Feature packaging and handling: net weight 0.616 kg and package gross weight 0.641 kg per pack of one across multiple projects. Business impact: simpler logistics, safer on-site handling, and predictable inventory planning for modular builds. Application: supports lean procurement and reliable stocking for repeatable ABB CombiLine projects.
Get a Quick Quote for a ABB 2CPX042338R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042338R9999?
Enquire Now
FAQs
A: Follow the CombiLine mounting instructions ZX2720-25, ZX2740-45, ZX2760-61, and MBX..N series to ensure correct alignment for a 1P copper busbar. Prepare the panel flange, inspect the copper surface for oxidation, position the busbar in the slot, and tighten per the recommended torque. Use properly rated connectors and route cables to minimize cross-talk and thermal buildup, especially in dense installation scenarios.
A: The busbar supports up to 1000 A nominal current in a 1P copper configuration, with an untreated surface that facilitates reliable contact. It complies with RoHS, REACH, and CE, and aligns with DIN 43673-1 standards for consistent cataloging (ETIM 8/9) and data management across procurement systems.
A: Yes. It is designed for single-pole modular distribution within CombiLine panels and matches a 30x192x10 mm footprint while supporting up to 1000 A. Its compact form factor helps maximize panel density, while ensuring proper heat management and regulatory compliance in industrial environments.
A: The busbar carries EU RoHS information, REACH declarations, and WEEE categorization. A CE declaration of conformity is documented as well, enabling straightforward regulatory approval for European installations and audit readiness for environmental compliance.
A: The combination of a robust 1000 A current path, predictable heat management, and standardized mounting reduces maintenance downtime and field rework. Faster installation and clear procurement data lower labor costs and project risk, delivering a favorable total cost of ownership over the life of the modular CombiLine installation.
