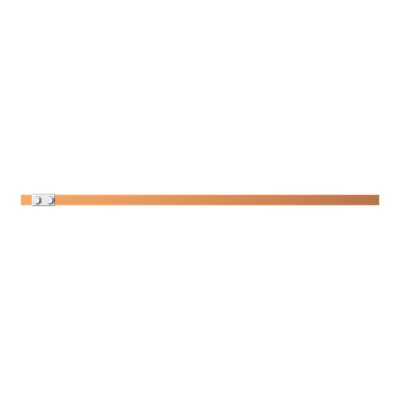

ABB 2CPX042632R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042632R9999
Quick Summary
ABB 2CPX042632R9999 copper busbar is a modular distribution solution for CombiLine panel systems. Engineers often face space constraints when routing high-current feeds, delaying installation and compromising reliability. This part combines 320 A capacity, DIN 43673-1 compatibility, and RoHS/REACH/WEEE compliance for regulated environments. As a busbar solution for ABB's CombiLine panels, it supports compact layouts and rapid field mounting, improving total cost of ownership. For panel builders, this translates to reproducible assembly times and consistent current paths. Designed for modular installations, it aligns with standard dimensions and ETIM classifications. This combination reduces risk, simplifies sourcing, and speeds panel qualification in automation projects.
Product Information
Extended Description
2CPX042632R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 638 mm, rated current maximum 320 A
Rated Current (In)
320 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
638 mm
Product Net Height
20 mm
Product Net Depth / Length
5 mm
Section Width
3
Product Net Weight
0.671 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.716 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: High-current copper construction. Business impact: Provides low electrical resistance with a 320 A rating, reducing voltage drop and improving overall distribution efficiency in dense control cabinets. Application: Ideal for automation and power distribution within manufacturing and process plants, supporting reliable high-current paths without compromising space. Feature: Precise dimensions for modular integration. Business impact: The 638 mm width, 20 mm height, and 5 mm depth enable compact panel designs within ABB CombiLine architectures, freeing enclosure space for additional components and easier heat management. Application: Suitable for multi-pole arrangements in compact control panels and modular switchgear. Feature: Compliance and sustainability. Business impact: RoHS, REACH, and WEEE declarations minimize regulatory risk and support end-of-life recycling; DIN 43673-1 compatibility ensures standardization across busbar systems. Application: Use in regulated manufacturing environments and process industries requiring traceable compliance. Feature: Installation readiness. Business impact: Mounting instructions ZX2224-2259_ZX2324-2353 and ETIM 8/9, eClass 27370303 classifications streamline procurement data and on-site assembly, reducing lead times. Application: Panel builders adopting digital BOMs will benefit from simplified sourcing and faster installation. Feature: Lightweight handling and lifecycle. Business impact: Net weight 0.671 kg and package weight 0.716 kg per unit lower handling and shipping costs while preserving robustness. Application: Logistics planning and on-site installation in space-constrained automation cabinets.
Get a Quick Quote for a ABB 2CPX042632R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042632R9999?
Enquire Now
FAQs
Yes. The 2CPX042632R9999 is designed for ABB's CombiLine modular distribution panels, featuring a 638 mm width and 20 mm height profile that aligns with standard CombiLine dimensions. Use mounting instructions ZX2224-2259_ZX2324-2353 for plug-and-play installation and verified fit within existing panel frameworks.
Key specs include a rated current of 320 A, 1P configuration, copper busbar enclosure, and an untreated surface. Dimensions are 638 mm width, 20 mm height, and 5 mm depth, making it suitable for compact routing in high-current distribution within automation cabinets.
Ideal for industrial automation and manufacturing environments requiring compact, high-current distribution in panel builds. It supports CombiLine modular panels in factory automation, process industries, and energy-intensive control cabinets where space efficiency and reliable current paths are critical.
It carries CE marking and RoHS/REACH declarations, along with a WEEE category 4 designation. DIN 43673-1 compatibility and ETIM/ eClass classifications (EC001522 Busbar, V11.0 27370303) support standard procurement data and regulatory alignment.
Net weight is 0.671 kg per unit, with a pack weight of 0.716 kg, which simplifies handling and reduces shipping costs. Combined with standardized mounting instructions and modular design, it shortens field install times and lowers total cost of ownership for panel projects.
