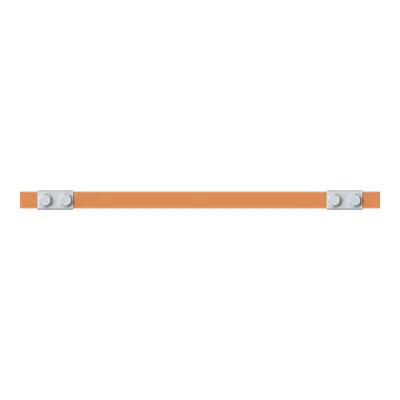

ABB 2CPX042715R9999 Busbar - 320 A CE RoHS Compliant
Part Number: 2CPX042715R9999
Quick Summary
ABB 2CPX042715R9999 Busbar provides a compact copper busbar solution for modular distribution panels in industrial automation. Engineers often struggle with unassembled panel components that slow commissioning and raise the risk of wiring errors. This device carries CE conformity, RoHS compliance, and REACH declarations, with DIN 43673-1 alignment and a clear WEEE classification for responsible lifecycle management. Designed for ABB CombiLine modular systems, it enables fast, safe installation and scalable power distribution, delivering reliability across demanding industrial environments. With a 320 A rating and a 345 mm panel width specification, it supports standard copper busbar configurations while keeping a compact footprint. The untreated copper finish simplifies sourcing and heat management, contributing to predictable thermal behavior in copper busbars.
Product Information
Extended Description
2CPX042715R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 2 = 345 mm, rated current maximum 320 A
Rated Current (In)
320 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
345 mm
Product Net Height
20 mm
Product Net Depth / Length
5 mm
Section Width
2
Product Net Weight
0.499 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.542 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: 320 A rated current provides ample headroom for modular distribution and peak loads. Benefit: Reduces the need for multiple interconnects and lowers voltage drop, improving overall system efficiency in industrial automation applications. Application: Suitable for CombiLine modular distribution panels where space is at a premium and load profiles are variable. Feature: 345 mm panel width compatibility and 2-section width design. Benefit: Enables precise fit within standard cabinet footprints, simplifying layout planning and panel assembly for panel builders. Application: Ideal for DIN rail-based and panel-mounted copper busbar configurations in manufacturing lines.Feature: Untreated copper surface with 1P, 1 pole configuration. Benefit: Predictable thermal performance and straightforward sourcing for OEMs, reducing lead times. Application: Used in single-pole distribution schemes across copper busbar installations.Feature: RoHS, REACH, and DIN 43673-1 compliance with WEEE 5 classification. Benefit: Ensures regulatory alignment, traceability, and end-of-life management, reducing compliance risk. Application: Essential for projects in Europe requiring formal declarations and standardised classifications.Feature: Mounting and installation support with ZX2224-2259_ZX2324-2353 instructions. Benefit: Facilitates fast, correct onboarding on site, minimizing commissioning delays. Application: Recommended for field installations in CombiLine modular panels where speed and accuracy matter.
Get a Quick Quote for a ABB 2CPX042715R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042715R9999?
Enquire Now
FAQs
The busbar is designed for CombiLine modular distribution systems with a 345 mm panel width and 1P configuration. Follow mounting instruction ZX2224-2259_ZX2324-2353 for correct alignment and secure connections. Package level is 1 piece per unit, facilitating straightforward stocking and installation.
Rated current is 320 A; it is a single-pole (1P) copper busbar with dimensions of 345 mm width, 20 mm height, and 5 mm depth. Net weight is 0.499 kg, with a section width of 2, and an untreated copper surface for predictable thermal behavior.
Yes. It carries CE conformity, RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863, REACH declarations, and a DIN 43673-1 alignment, plus WEEE category 5 classification, ensuring regulatory and environmental compliance.
Utilize the mounting instructions ZX2224-2259_ZX2324-2353 for correct attachment and spacing. Ensure the 345 mm panel width matches your enclosure, and connect to 320 A-rated paths to avoid overloading. The untreated copper surface should be handled per standard installation practices to prevent oxidation during assembly.
By aligning with RoHS/REACH and DIN standards, offering straightforward sourcing (0.499 kg weight, 0.5 cm depth), and supporting fast on-site installation, this busbar reduces commissioning time, lowers risk of wiring errors, and enhances lifecycle traceability—leading to lower total cost of ownership in industrial facilities.
