ABB 2CPX042716R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042716R9999
Quick Summary
ABB 2CPX042716R9999 copper busbar enables modular power distribution in panel systems. Engineers often struggle with space constraints and uneven current paths in copper distribution, leading to heat and maintenance headaches. The solution aligns with CE conformity, RoHS and REACH declarations, WEEE categorization, and DIN 43673-1 standards to reassure compliance across environments. Its compact 595 mm width, 20 mm height, and 5 mm thickness support scalable panel designs, while easing installation for panel builders and integrators. By delivering a 320 A rating in a 1P format, it helps reduce hardware counts and optimize footprint, delivering faster builds and lower lifecycle costs in industrial control applications.
Product Information
Extended Description

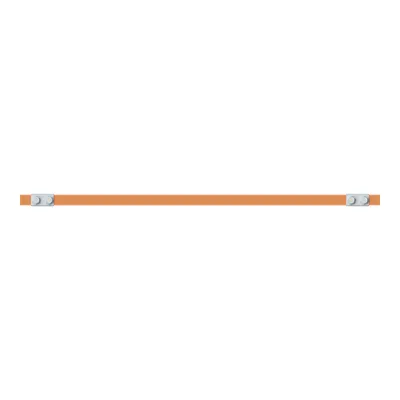

2CPX042716R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 595 mm, rated current maximum 320 A
Rated Current (In)
320 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
595 mm
Product Net Height
20 mm
Product Net Depth / Length
5 mm
Section Width
3
Product Net Weight
0.723 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.775 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
320 A rated current delivers a robust main-path without excessive busbar segmentation. This translates to fewer joints, lower resistance losses, and consistent thermal performance, which reduces overheating risk in peak-load scenarios. Copper busbar with 595 mm width, 20 mm height, and 5 mm thickness supports compact panel layouts in the CombiLine system. This geometry enables efficient use of enclosure space and straightforward installation in panel widths where space is at a premium. Untreated copper surface offers high conductivity with minimal processing, while RoHS and REACH declarations and DIN 43673-1 compliance provide regulatory confidence. For panel builders, this means easier sourcing and predictable performance across batches. Compliance with WEEE category 4 and CE Declarations of Conformity ensures end-of-life handling and user safety in both B2B and B2C contexts. Mounting instructions ZX2224-2259_ZX2324-2353 and the 1-piece package level simplify logistics and on-site assembly. The weight of 0.723 kg per unit supports manageable handling and ergonomic installation.
Get a Quick Quote for a ABB 2CPX042716R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042716R9999?
Enquire Now
FAQs
Installation follows the mounting guidelines ZX2224-2259_ZX2324-2353 for the CombiLine modular panel system. The busbar is 595 mm wide, 20 mm high, and 5 mm thick, designed for 1P configurations with a 320 A rating. Ensure proper clearance and secure mounting to minimize resistance paths and heat buildup in service conditions.
Key specifications include a 320 A rated current, 1P polarity, copper busbar enclosure, dimensions of 595 mm width by 20 mm height and 5 mm depth, and an Untreated surface finish. It carries RoHS and REACH declarations, a DIN 43673-1 standard alignment, and WEEE category 4 classification for compliant end-of-life handling.
Yes. The 2CPX042716R9999 adheres to DIN 43673-1 and CE declarations, with RoHS and REACH compliance and a WEEE category 4 classification. This alignment simplifies compatibility with standard industrial control cabinets and ensures regulatory alignment across European markets and multi-site deployments.
The busbar carries RoHS information consistent with EU Directive 2011/65/EU and Amendment 2015/863, plus a REACH declaration. It provides a compliance trail for regulatory audits and supplier assessments, helping manufacturers meet sustainability and environmental requirements without sacrificing performance or reliability.
Adopting the 2CPX042716R9999 can reduce total cost of ownership by lowering heat-related losses, decreasing the need for multiple parallel bars, and simplifying installation with its compact footprint. The 320 A rating supports high-load applications in a single path, reducing maintenance intervals and enhancing reliability in industrial control panel projects.
