ABB 2CPX042720R9999 Busbar DIN 43673-1
Part Number: 2CPX042720R9999
Quick Summary
Copper busbar is a compact conductor designed for modular distribution panels in electrical distribution systems. Sourcing a single component that meets current rating, mechanical fit, and regulatory compliance is a common challenge in panel builds. This part carries 320 A, 1P, in an ABB CombiLine system and aligns with CE, RoHS, and REACH requirements. By using this busbar, manufacturers streamline BOMs, reduce wiring complexity, and improve reliability across industrial control panels, driving uptime and consistent performance in harsh environments.
Product Information
Extended Description

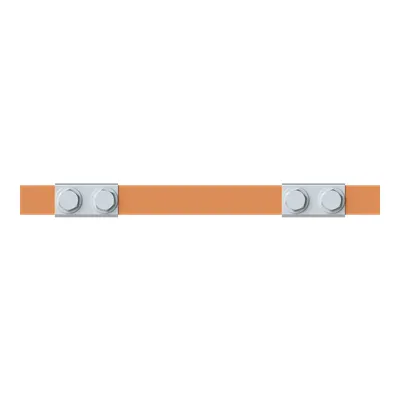

2CPX042720R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 154 mm, rated current maximum 320 A
Rated Current (In)
320 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
154 mm
Product Net Height
20 mm
Product Net Depth / Length
5 mm
Section Width
1
Product Net Weight
0.334 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.378 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: High current rating in a compact footprint. Benefit: Supports up to 320 A within a 154 mm width and 5 mm depth, enabling higher panel density and lower enclosure size. Application: Suitable for ABB CombiLine modular distribution panels, improving space utilization and reducing wiring runs. Feature: 1P copper busbar with untained surface. Benefit: Provides a robust, low-resistance current path while allowing straightforward mounting. Application: Fits single-pole configurations in compact panel sections with predictable thermal behavior. Feature: Full regulatory compliance. Benefit: RoHS, REACH, WEEE and DIN 43673-1 compliance reduce regulatory risk and simplify procurement. Application: Ideal for certified panel builds and audits in automotive, machinery, and industrial plants. Feature: Detailed documentation and mounting guidance. Benefit: Clear conformity declarations and mounting instructions streamline installation and service. Application: ZX2224-2259_ZX2324-2353 installation suite supports rapid commissioning. Feature: Precise dimensions and packaging. Benefit: 154 mm width, 20 mm height, 5 mm depth ensure consistent fit within 1-section CombiLine layouts. Application: Predictable installation in modular panels and easy integration with BOM planning.
Get a Quick Quote for a ABB 2CPX042720R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042720R9999?
Enquire Now
FAQs
Follow the mounting instructions ZX2224-2259 and ZX2324-2353 for CombiLine assemblies. Ensure the 1P copper busbar aligns with the panel’s section width of 154 mm and leverages the 5 mm depth for proper seating. Use appropriate hardware and verify current path integrity after installation to maximize performance and safety.
Key specs include rated current of 320 A, 1P configuration, copper busbar enclosure, and an untreated surface finish. Product net dimensions are 154 mm wide by 20 mm high and 5 mm deep, designed to fit ABB CombiLine modular distribution panels in 1-section widths.
Yes. RoHS information is provided under EU Directive 2011/65/EU with amendments, and the REACH declaration confirms compliance with substances limits. WEEE categorization is defined, and the product carries the CE conformity declaration, supporting compliant use in regulated environments.
The 154 mm width enables high-density packing within modular CombiLine panels, reducing overall enclosure footprint and wiring complexity. This size is designed for single-pole sections, promoting predictable thermal performance and easier BOM planning for panel builders.
Customers can reference EU Declaration of Conformity for the CombiLine system, the mounting instructions ZX2224-2259_ZX2324-2353, and the Data Sheet suite. Additional references include ETIM class EC001522 (Busbar), DIN 43673-1 standards, and CMRT for supply-chain transparency.
