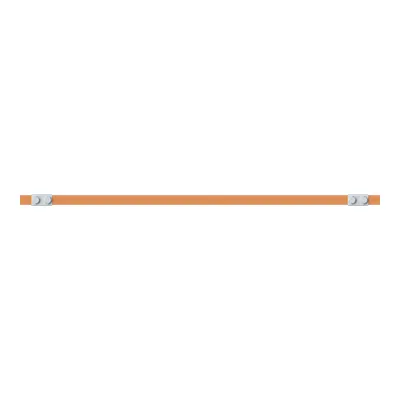

ABB 2CPX042722R9999 Busbar - RoHS/CE, 320 A, 654 mm
Part Number: 2CPX042722R9999
Quick Summary
ABB 2CPX042722R9999 is a copper busbar designed for modular distribution panels in industrial power systems. Engineers often contend with space constraints and complex wiring when fitting high-current paths into compact enclosures. This part ships CE certified with RoHS and REACH declarations, supporting safe assembly and sustainable end-of-life management. Its 654 mm wide, 20 mm tall, and 5 mm thick profile delivers reliable current paths while minimizing panel footprint. In practice, the 320 A rating enables scalable distribution in tight installations, reducing cable runs and install time. The solution integrates smoothly with ABB CombiLine systems, simplifying procurement, installation, and ongoing maintenance for panel builders. Compliance data helps lower regulatory risk and supports lifecycle planning for manufacturing facilities.
Product Information
Extended Description
2CPX042722R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 654 mm, rated current maximum 320 A
Rated Current (In)
320 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
654 mm
Product Net Height
20 mm
Product Net Depth / Length
5 mm
Section Width
3
Product Net Weight
0.782 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.843 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
High current rating of 320 A enables a compact busbar solution, reducing the number of parallel conductors and simplifying thermal management. This translates into lower cabinet depth and a smaller footprint, which directly shortens assembly time and lowers installation risk for panel builders. The 654 mm width with a 20 × 5 mm cross-section provides a stable, uniform current path that supports predictable heat dissipation in modular distributions. Copper construction ensures excellent conductivity and mechanical resilience in ABB CombiLine environments, while surface finishing remains untreated to facilitate on-site customization or coating per customer requirements. RoHS, REACH, and WEEE declarations mitigate compliance risk and streamline end-of-life handling, improving total cost of ownership. The device’s 1P enclosure type and DIN 43673-1 classification align with industry standards, simplifying procurement and stocking for distributors and OEMs. Mounting ZX2224-2259_ZX2324-2353 instructions support straightforward installation and service.
Get a Quick Quote for a ABB 2CPX042722R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042722R9999?
Enquire Now
FAQs
Installation involves aligning the busbar within the 654 mm wide panel frame and securing it according to the mounting instructions ZX2224-2259_ZX2324-2353. Ensure the enclosure is rated for 320 A and the circuit is de-energized before mounting. Verify orientation for optimal current path, connect conductors in accordance with local electrical codes, and perform a final torque check on all connection points to maintain reliability and safety.
The busbar is rated for 320 A and comes in a 1P configuration with a copper enclosure. Its dimensions are 654 mm in width, 20 mm in height, and 5 mm in depth. The surface is untreated, permitting field coating if required. It is RoHS and REACH compliant, with WEEE category 4 classification for large equipment, making it suitable for industrial distribution panels.
Yes. This model is specifically designed for CombiLine modular distribution panels and aligns with ABB’s panel-building ecosystem. The 654 mm width matches the panel spec, while the 1P copper busbar supports efficient current distribution. Mounting instructions ZX2224-2259_ZX2324-2353 provide validated guidance, ensuring straightforward integration, consistency across assemblies, and simplified spare parts management for service teams.
The busbar carries CE conformity and RoHS compliance, with REACH declarations and a WEEE category 4 classification for large equipment. Additional standards include DIN 43673-1 and ETIM classifications EC001522 for Busbar. These certifications support regulatory compliance, safer handling, and smoother procurement across European and global supply chains.
Adopting the 2CPX042722R9999 busbar reduces wiring complexity and cabinet footprint, shortening installation times and limiting space-related labor costs. Its robust copper design provides reliable thermal performance, potentially lowering failure risk in high-load applications. Combined with ABB CombiLine compatibility, it streamlines maintenance, spares availability, and lifecycle planning, delivering predictable total cost of ownership for panel builders and manufacturers.
