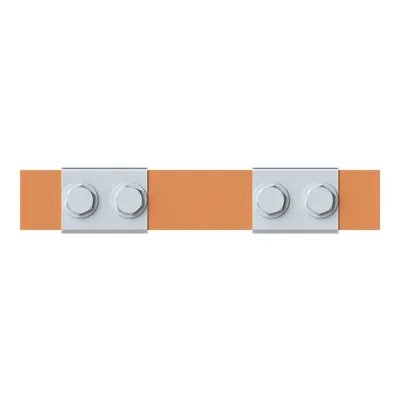

ABB 2CPX042726R9999 Power Busbar - 440 A Copper
Part Number: 2CPX042726R9999
Quick Summary
Power Busbar ABB 2CPX042726R9999 provides a robust copper busbar core for modular CombiLine distribution panels in industrial control cabinets. Engineers often contend with tight enclosures and the need to route high currents without creating heat or wiring clutter. This solution addresses space constraints while delivering reliable current paths, tested for routine operation in demanding environments. It carries CE conformity and RoHS/REACH declarations, with WEEE categorization for lifecycle disposal, supporting compliant deployment across European facilities. By aligning with DIN 43673-1 and ETIM EC001522 standards, it ensures compatibility with panel builders and maintenance teams. The product also pairs well with standard ZX mounting instructions, enabling faster installation and simplified spare-part management, while supporting ongoing cost reduction through reduced copper losses and streamlined assembly.
Product Information
Extended Description
2CPX042726R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 95 mm, rated current maximum 440 A
Rated Current (In)
440 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
95 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
1
Product Net Weight
0.366 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.436 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current 440 A → Business Impact: Enables high-load feeders with fewer parallel paths, reducing copper losses and simplifying thermal management in compact cabinets. Application: motor starters and distribution feeders in CombiLine panels. Feature: 1P copper busbar construction → Business Impact: Streamlines routing and assembly in modular panels, improving insulation margins and serviceability. Application: single-feed distribution modules in 95 mm wide sections. Feature: Dimensions 95 mm width, 30 mm height, 5 mm depth → Business Impact: Fits standard section widths, saving panel space and enabling denser layouts. Application: modular panel assemblies in automation cabinets. Feature: RoHS and REACH compliance with EU declarations and WEEE categorization → Business Impact: Lowers regulatory risk and simplifies procurement across EU sites. Application: European installations and lifecycle planning. Feature: ZX mounting compatibility with ZX2224-2259_ZX2324-2353 → Business Impact: Accelerates commissioning and reduces field errors. Application: standard ABB CombiLine panel builds.
Get a Quick Quote for a ABB 2CPX042726R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042726R9999?
Enquire Now
FAQs
The busbar is designed for ABB CombiLine modular panels, conforming to ETIM EC001522 and DIN 43673-1 classifications. With a 95 mm section width and a 1P copper construction, it integrates into standard ABB panel architectures and simplifies stackable distributions. Always verify mounting instructions ZX2224-2259_ZX2324-2353 during installation.
Rated current of 440 A supports substantial feeders and motor drives, reducing the need for parallel conductors. The single-pole 1P copper busbar provides a direct high-current path, compact at 95 mm width and 30 mm height, suitable for restricted enclosures in modern automation cabinets.
It carries EU CE Declaration of Conformity, RoHS Status under EU Directive 2011/65/EU and Amendment 2015/863, REACH Declaration, and WEEE categorization. Date stamps show RoHS 20240903 and REACH 20240902, supporting compliance in European facilities and end-of-life handling.
Follow ABB ZX mounting instructions ZX2224-2259_ZX2324-2353 for correct alignment and secure fastenings. The 95 mm section width fits standard distribution panel footprints, and the copper busbar should be installed in protected environments to maintain surface integrity of the untitled finish and avoid corrosion.
Using the 440 A copper busbar reduces wiring complexity and copper losses, enabling denser panel layouts and faster commissioning. Regulatory compliance with CE, RoHS, REACH reduces risk, while standardized installation minimizes downtime and spare-parts costs, delivering measurable total cost of ownership improvements over the lifecycle of CombiLine panels.
