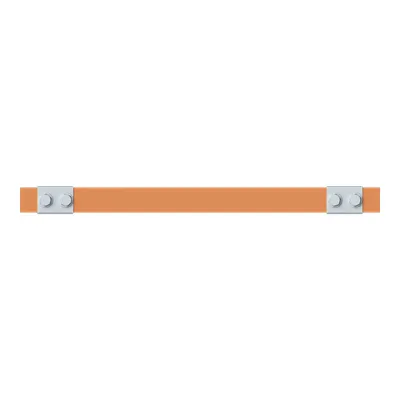

ABB 2CPX042727R9999 Copper Busbar - 440 A DIN 43673-1
Part Number: 2CPX042727R9999
Quick Summary
ABB 2CPX042727R9999 copper busbar is a modular distribution component designed for CombiLine panels delivering up to 440 A. This solution addresses common space and thermal management challenges in high-current switchgear assemblies by offering a compact, standardized busbar option. It carries CE conformity and RoHS/REACH declarations, with DIN 43673-1 recognition, ensuring regulatory alignment across European markets. By leveraging this copper busbar, panel builders can achieve faster assembly, reduced total cost of ownership, and improved traceability within modular distribution infrastructures, while maintaining robust electrical performance and compliance.
Product Information
Extended Description
2CPX042727R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 2 = 345 mm, rated current maximum 440 A
Rated Current (In)
440 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
345 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
2
Product Net Weight
0.713 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.774 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current of 440 A → Business Impact: Supports high-load distribution without oversized enclosures or parallel runs, enabling tighter cabinet layouts and improved cooling. Application: Ideal for CombiLine modular distribution panels in industrial control rooms. Feature: 345 mm width, 30 mm height, 5 mm depth → Business Impact: Enables precise panel width matching and straightforward integration with 2-width sections, reducing design time. Application: Panel builders and integrators streamlining modular installations. Feature: Copper busbar enclosure with untitled surface → Business Impact: Ensures superior electrical conductivity and predictable current paths while simplifying cleaning and maintenance. Application: High-reliability power distribution in harsh environments. Feature: RoHS, REACH, and DIN 43673-1 compliance → Business Impact: Minimizes regulatory risk and supports global sourcing strategies. Application: Regulatory-driven projects and compliance audits. Feature: DIN and ETIM/eClass classifications → Business Impact: Improves cataloging, procurement accuracy, and cross-vendor compatibility. Application: Enterprise procurement and BOM management in engineering workflows.
Get a Quick Quote for a ABB 2CPX042727R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042727R9999?
Enquire Now
FAQs
The busbar is rated for 440 A, enabling high-current distribution in a compact footprint. It uses a 1P configuration and copper enclosure to maintain reliable current paths in modular distribution panels.
Yes. The 2CPX042727R9999 is specified for CombiLine modular panels and is designed to fit panel widths corresponding to the 2-section setup. It ships not assembled, allowing on-site integration with the panel framework.
The busbar complies with CE declarations, RoHS (Directive 2011/65/EU and Amendment 2015/863), REACH, and DIN 43673-1. It is categorized under WEEE and supports ETIM 8/9 classifications for accurate procurement.
Product net width is 345 mm, height 30 mm, depth 5 mm, with a net weight of 0.713 kg. Package details indicate a gross weight of 0.774 kg per pack, supporting straightforward logistics planning.
Mounting instructions ZX2224-2259_ZX2324-2353 guide installation, enabling quick mounting in modular panels. The untitled surface finish and standard dimensions simplify maintenance and future replacements, reducing downtime and inventory diversity in high-current architectures.
