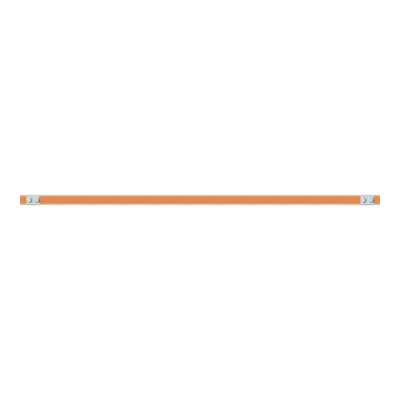

ABB 2CPX042730R9999 Copper Busbar - 440 A RoHS CE
Part Number: 2CPX042730R9999
Quick Summary
Copper busbar enables high-current power distribution in modular panels, supporting reliable ABB applications. Engineers often wrestle with space constraints, difficult wiring layouts, and downtime during panel upgrades. This product carries CE, RoHS, and REACH declarations, plus WEEE categorization, ensuring regulatory compliance across industries. Its 440 A rating on a 1P copper busbar with CombiLine integration translates into improved efficiency, easier maintenance, and scalable growth. Designed for seamless integration with ABB modular panels, it also aligns with ETIM and DIN standards to streamline procurement and installation. The result is a robust, field-ready solution that reduces installation time and lifecycle costs. Whether upgrading an existing CombiLine or deploying new builds, this busbar supports fast, compliant deployment.
Product Information
Extended Description
2CPX042730R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 5 = 1095 mm, rated current maximum 440 A
Rated Current (In)
440 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1095 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
5
Product Net Weight
1.71 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.834 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature 1: Rated Current and Poles — The busbar supports up to 440 A in a single 1P configuration, providing a direct, high-current path for demanding loads. Business impact: reduces conductor count, minimizes voltage drop, and improves overall panel efficiency. Application: ideal for ABB CombiLine modular distribution panels where reliable low-impedance power sharing is essential. Feature 2: Dimensions and Section Width — With a net width of 1095 mm and a section width of 5, the component fits wide panel footprints while preserving space economics. Business impact: enables compact installation in large-scale switchgear without compromising accessibility. Application: suitable for modules requiring precise width alignment in 30 mm height envelopes. Feature 3: Material and Finish — Copper busbar with an untreated surface offers high conductivity and easy integration with copper components. Business impact: lowers contact resistance, supports durable performance, and simplifies assembly. Application: compatible with standard copper busbar interfaces across CombiLine systems. Feature 4: Compliance and Declarations — RoHS and REACH declarations plus WEEE categorization ensure regulatory adherence. Business impact: mitigates compliance risk, simplifies supplier audits, and supports international deployments. Application: essential for EU and global manufacturing, procurement, and end-of-life planning. Feature 5: Installation and Standards Compatibility — Mounting instructions ZX2224-2259_ZX2324-2353 and ETIM/DIN standards align with established practices. Business impact: reduces install time and design iteration, improves traceability, and aids cross-team collaboration. Application: aligns with DIN 43673-1 classifications for busbars and typical panel assembly workflows.
Get a Quick Quote for a ABB 2CPX042730R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042730R9999?
Enquire Now
FAQs
Begin by verifying the panel width and mounting points for a 30 mm high, 1095 mm wide section. Use the ZX2224-2259_ZX2324-2353 mounting instructions to align the busbar with the installer’s kit and connector blocks. Tighten to the specified torque, ensure clean copper-to-copper contact, and verify electrical continuity across the 1P circuit before commissioning.
The busbar is rated for 440 A and configured as 1P (single pole). This combination provides a high current path with a compact footprint, suitable for distributing power to a single primary circuit within modular distribution panels while keeping impedance low for improved efficiency.
Yes. The product carries RoHS information and EU declarations of conformity, as well as REACH declarations and WEEE categorization. These declarations confirm compliance with applicable EU directives and ensure safe handling, lifecycle planning, and end-of-life disposal in line with industry regulatory standards.
This copper busbar is designed for ABB CombiLine modular distribution panels and aligns with ETIM and DIN standards for busbars. It supports integration with standard copper interfaces and follows DIN 43673-1 guidance, helping ensure interoperability across ABB systems and compatible third-party cabinet architectures.
Expect lower electrical losses due to a high-conductivity copper path, reduced connector wear from fewer pathways, and extended service life with a robust yet simple mounting solution. The RoHS/REACH/WEEE compliance streamlines regulatory audits, while the modular design reduces downtime during upgrades or expansions, delivering measurable lifecycle cost savings.
